UTMOST ATTENTION TO OUR PASSENGERS

SBA63-CO


TECHNICAL CHARACTERISTICS Download PDF

Chassis: Self-supporting anti-corrosion Aluminium structure
Axles: single 9000 Kg capacity - 1st liftable, 2nd fixed and 3rd self-steering Brakes: disk Ø 430 mm
Braking system: pneumatic with 2 lines according to ECE regulations with 2 channel EBS and RSS
Parking Brakes: spring brakes with pneumatic controls
Suspensions: pneumatic type with electronic control

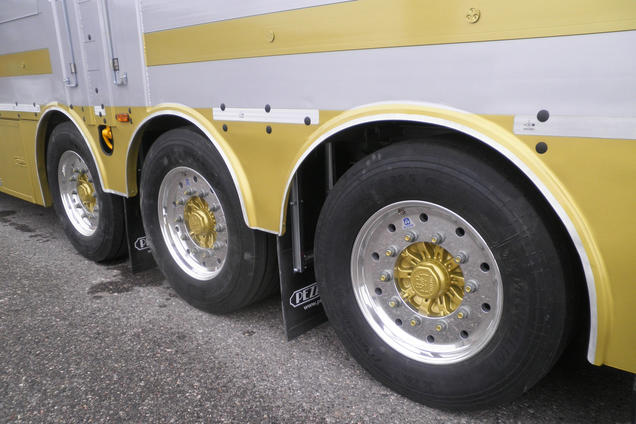

Wheels: disc 22.5 x 15.00 and M spigot Tyres: 455/45R22.5 160J single
King Pin: 2 demountable from below
Landing legs: two speed with rocking feet
Body: box unit for livestock 2+2, 2+3, 3+3, 3+4 or 4+4 loading decks with hydraulic controls, raising lowering roof on lower part and on goose neck, side doors and back doors, wide tool boxes under the body, internal and external working lights
Electrohydraulic system: completed with automatic safety device in accordance with Machines Directive and Work Safety Institute (approval TUV n° 24 03 9761 002)

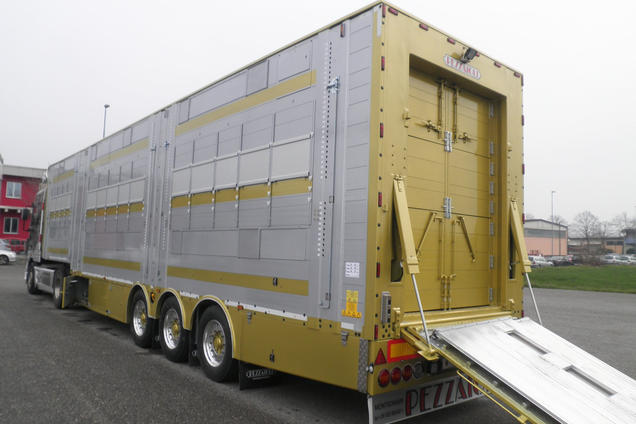

Loading ramp: hydraulically controlled, anti-slip, with incorporated side guards and working as barn doors if necessary
Partition gates: in aluminium or zinc coated steel with over-flap for larger animals
Ventilation system: autonomous with 15 side fans Ø 255 mm. Max air flow 19500 m3/h

OPTIONALS
  • Vents on sided to be closed with aluminium flaps (+300 Kg)
  • Heating system for drinking system
  • Remote control for decks and roof
  • Positioning GPS system integrated with temperature and opening doors recording
