Chassis: self-supporting anti-corrosion Aluminium structure
Axles: twin 10000 Kg capacity - 1st liftable, 2nd and 3rd fixed
Brakes: disk Ø 370 mm
Braking system: pneumatic with 2 lines according to ECE regulations with 2 channel EBS and RSS
Parking Brakes: spring brakes with pneumatic controls
Suspensions: pneumatic type with electronic control

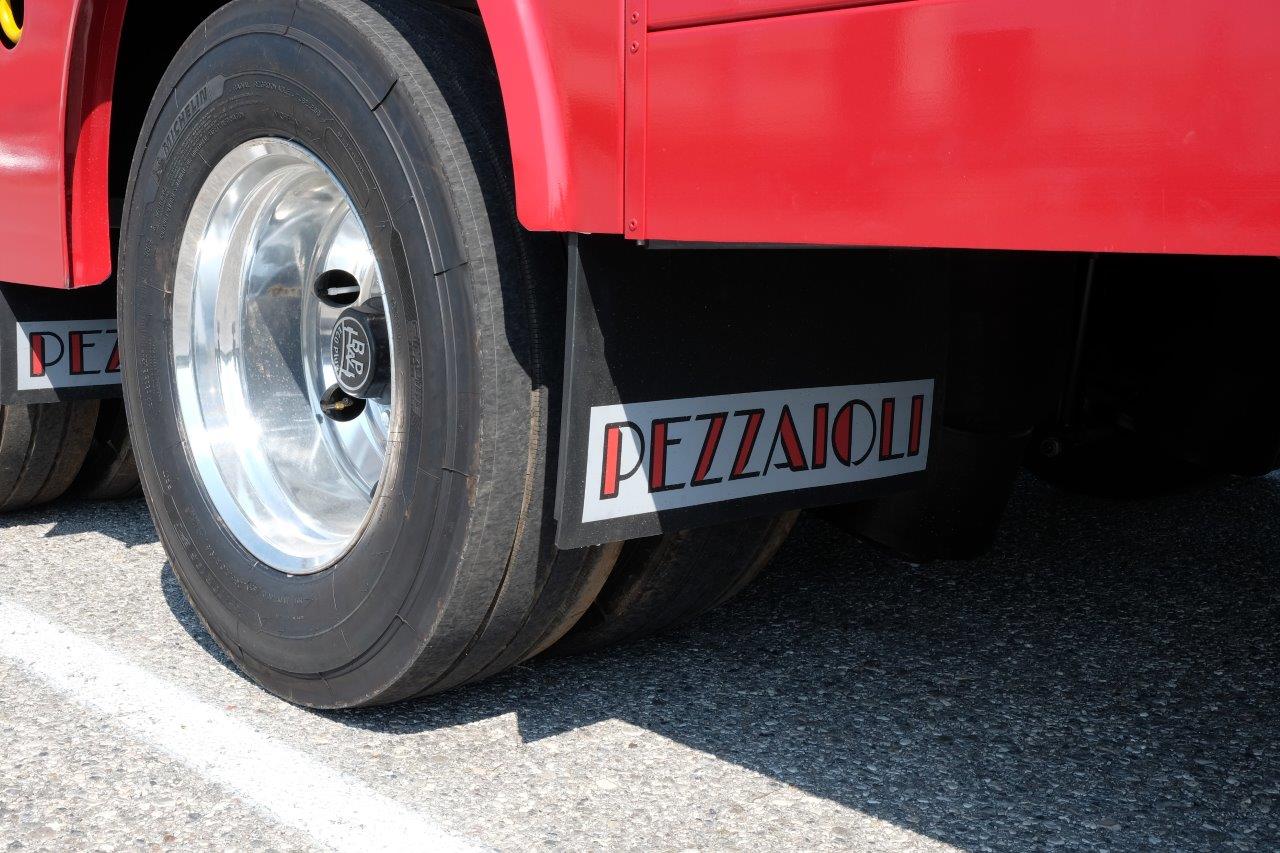

Wheels: disc 19.5 x 7.50 and M spigot
Tyres: 265/70R19.5 143/141J twin
King Pin: 2 demountable from below
Landing legs: two speed with rocking feet

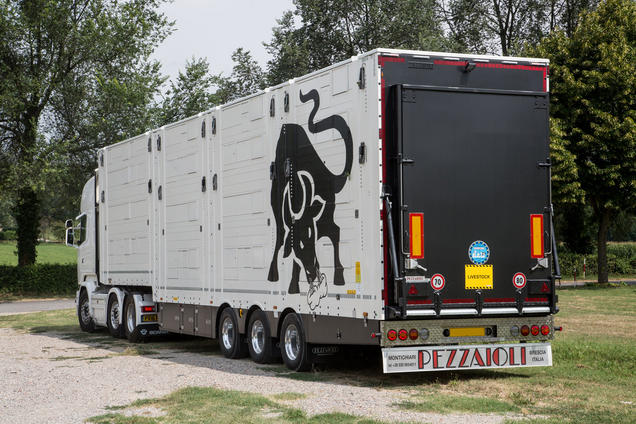

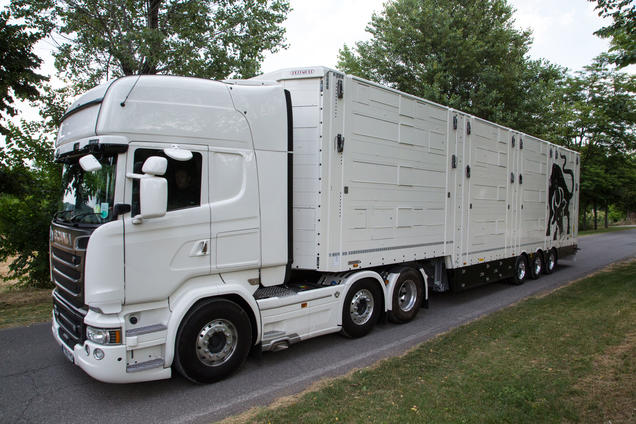

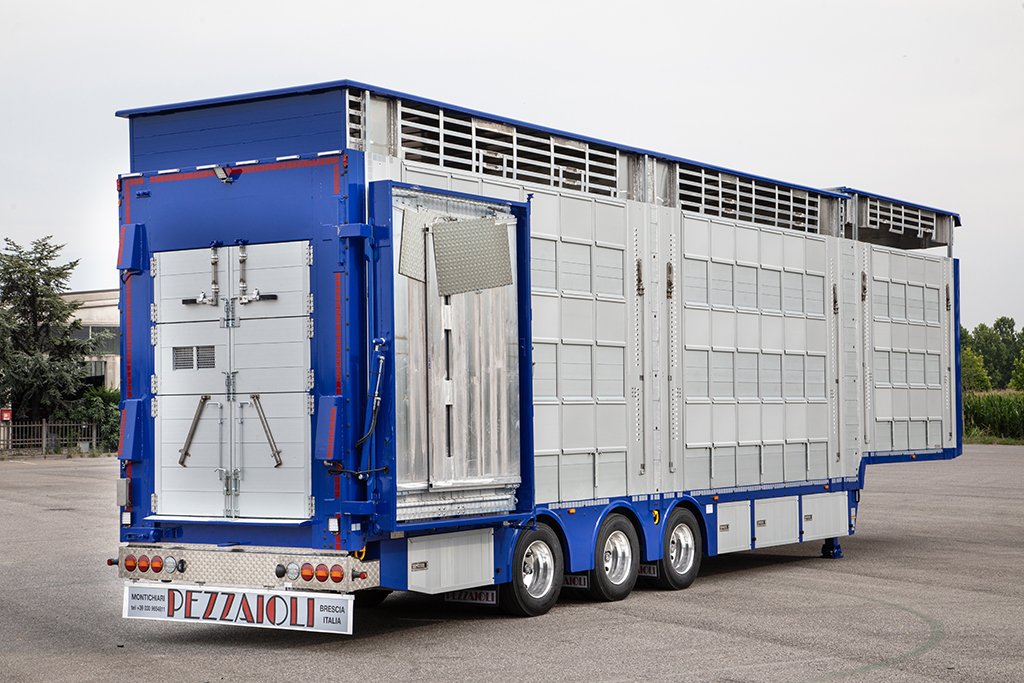

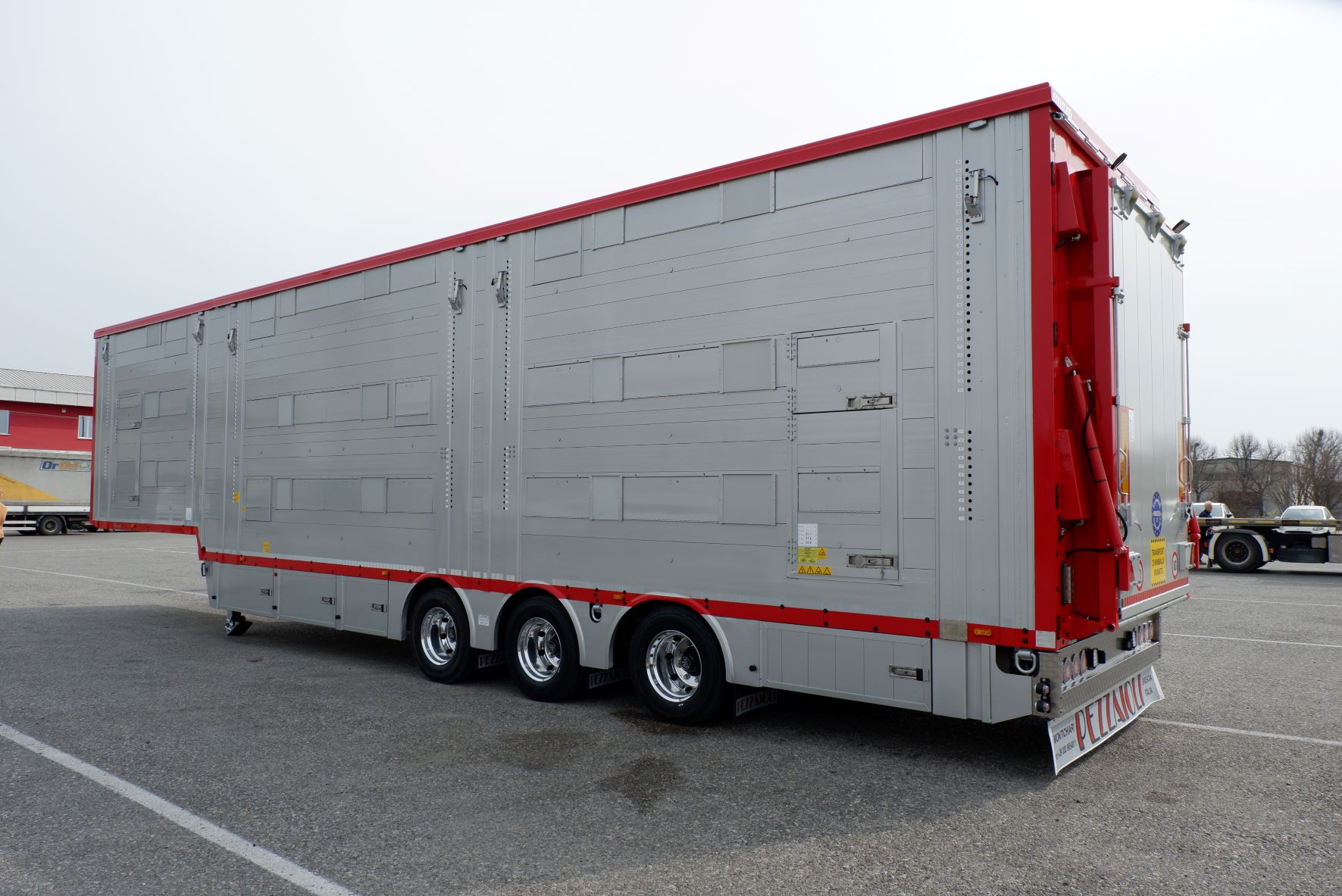

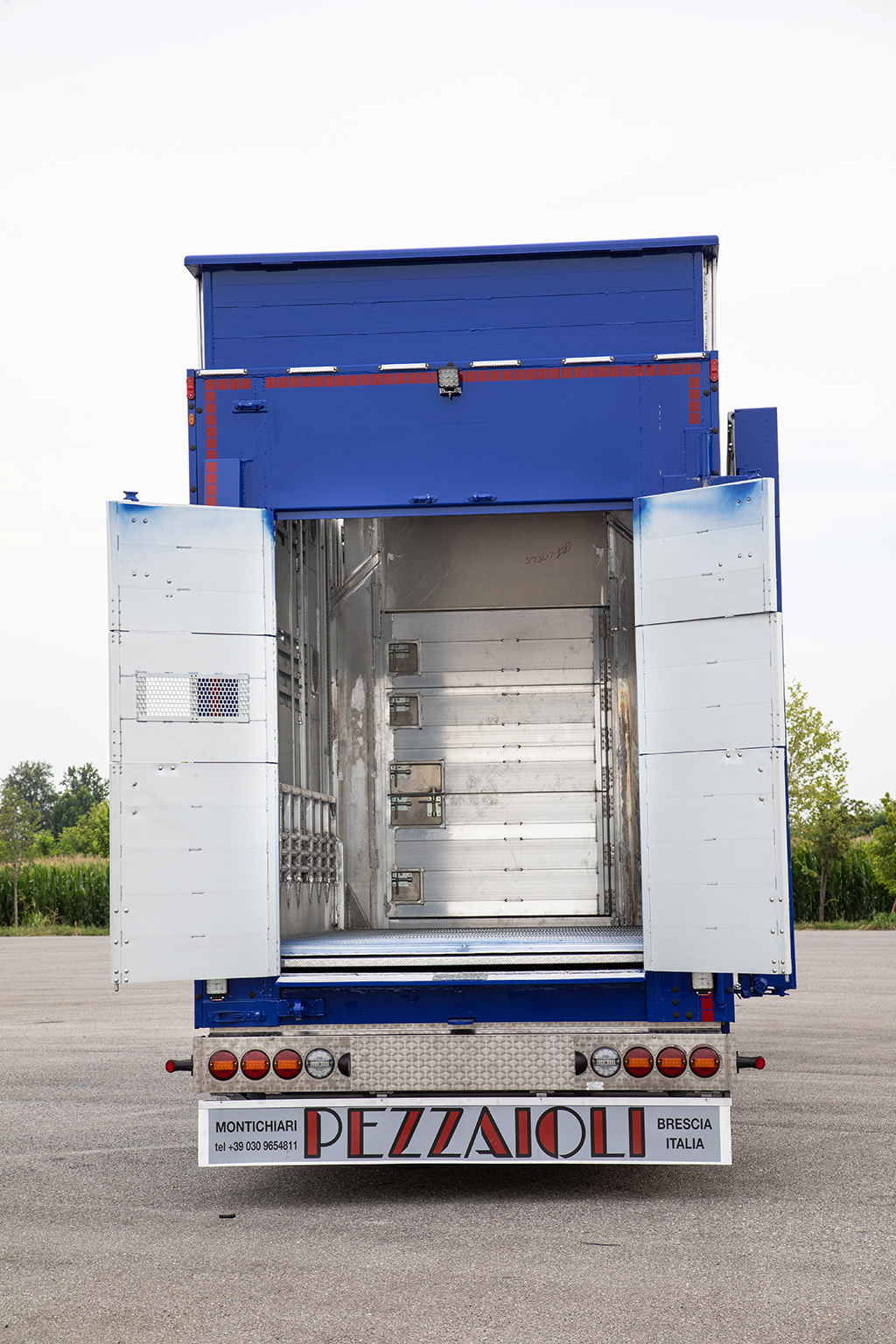

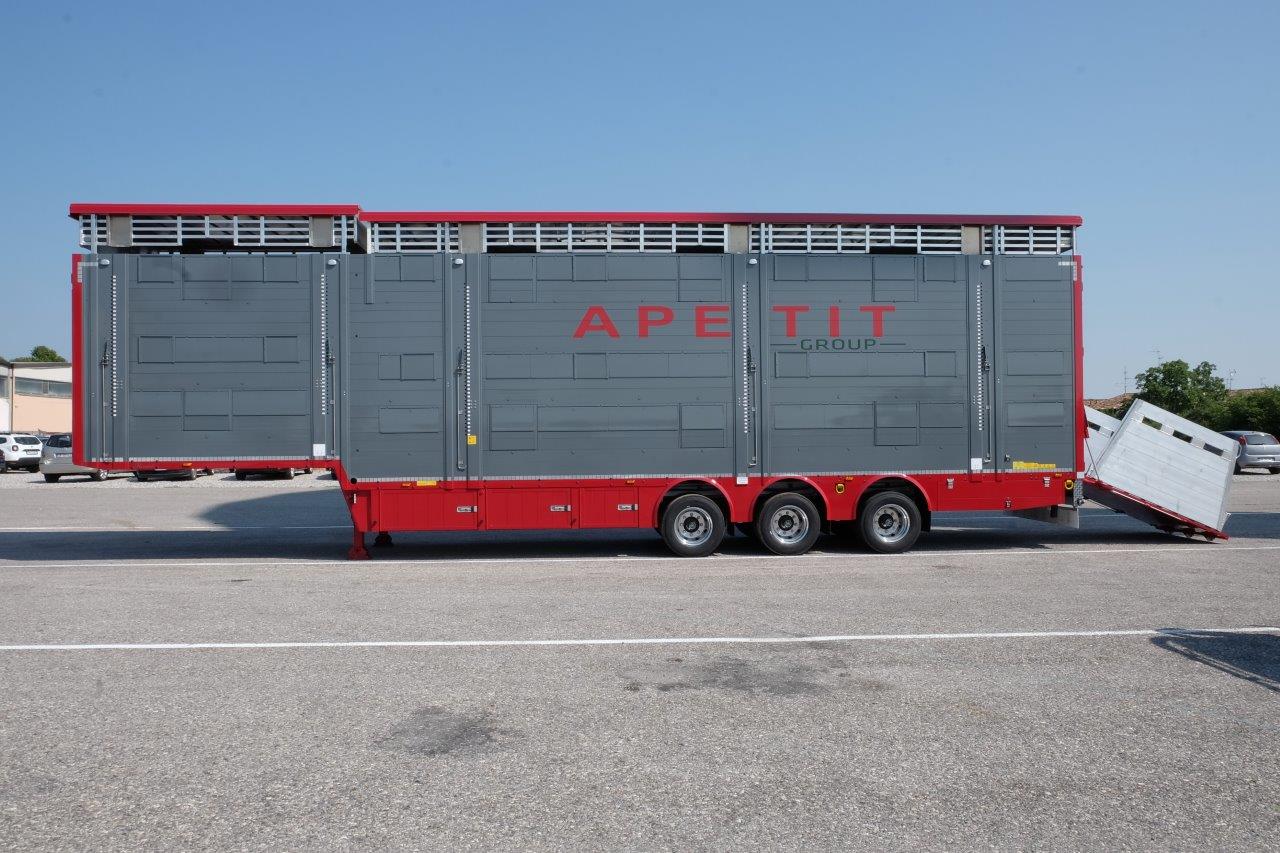

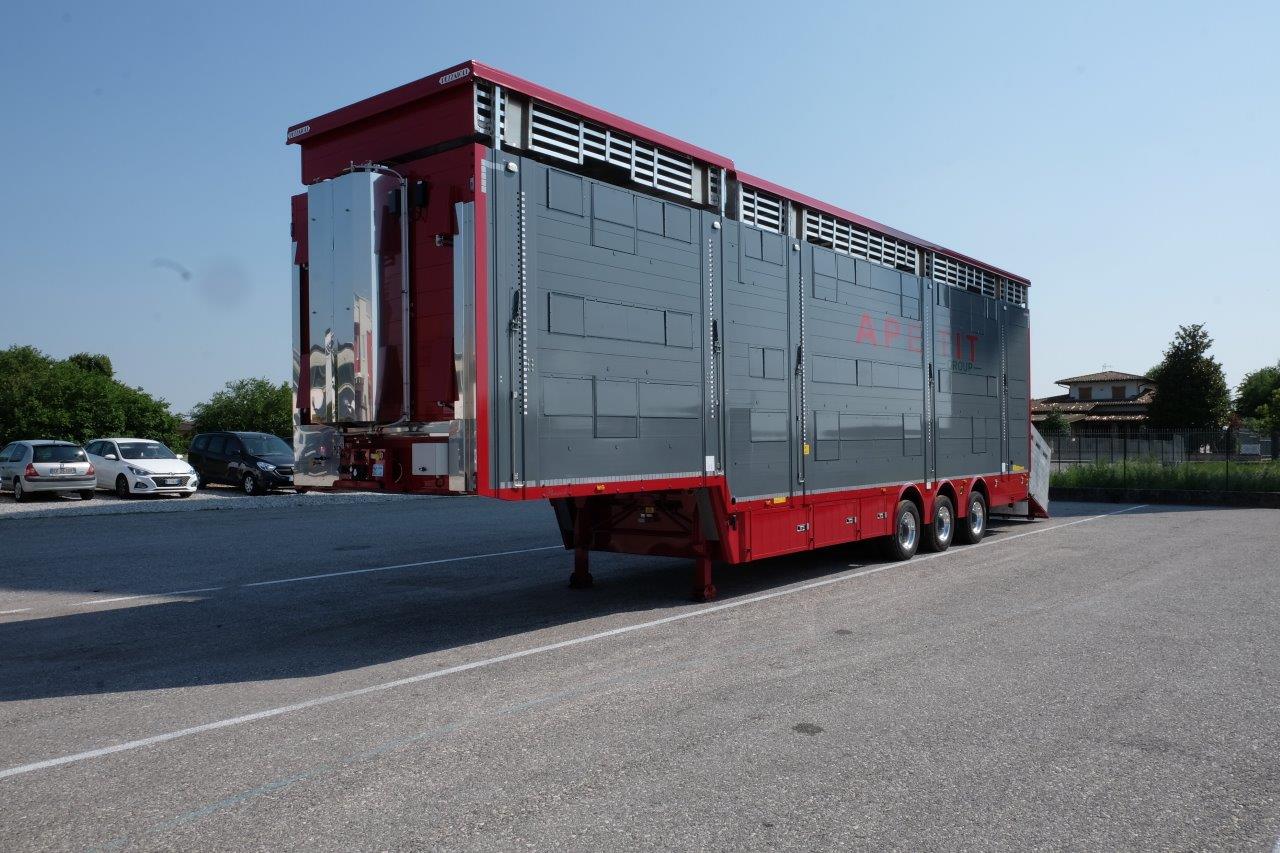

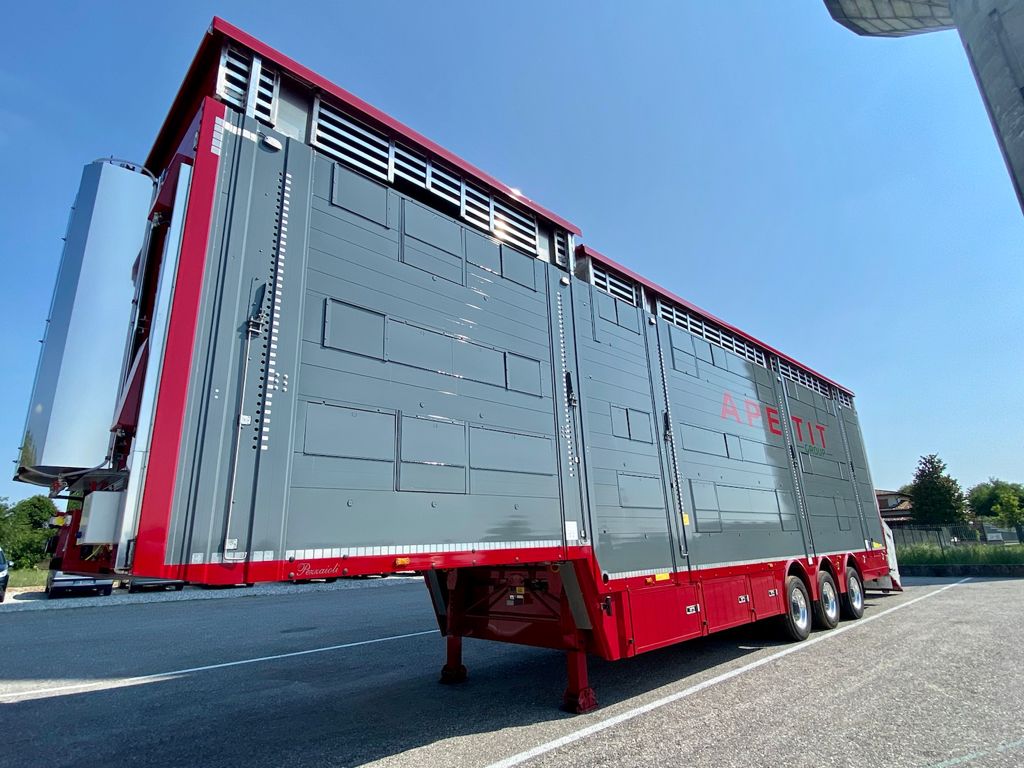

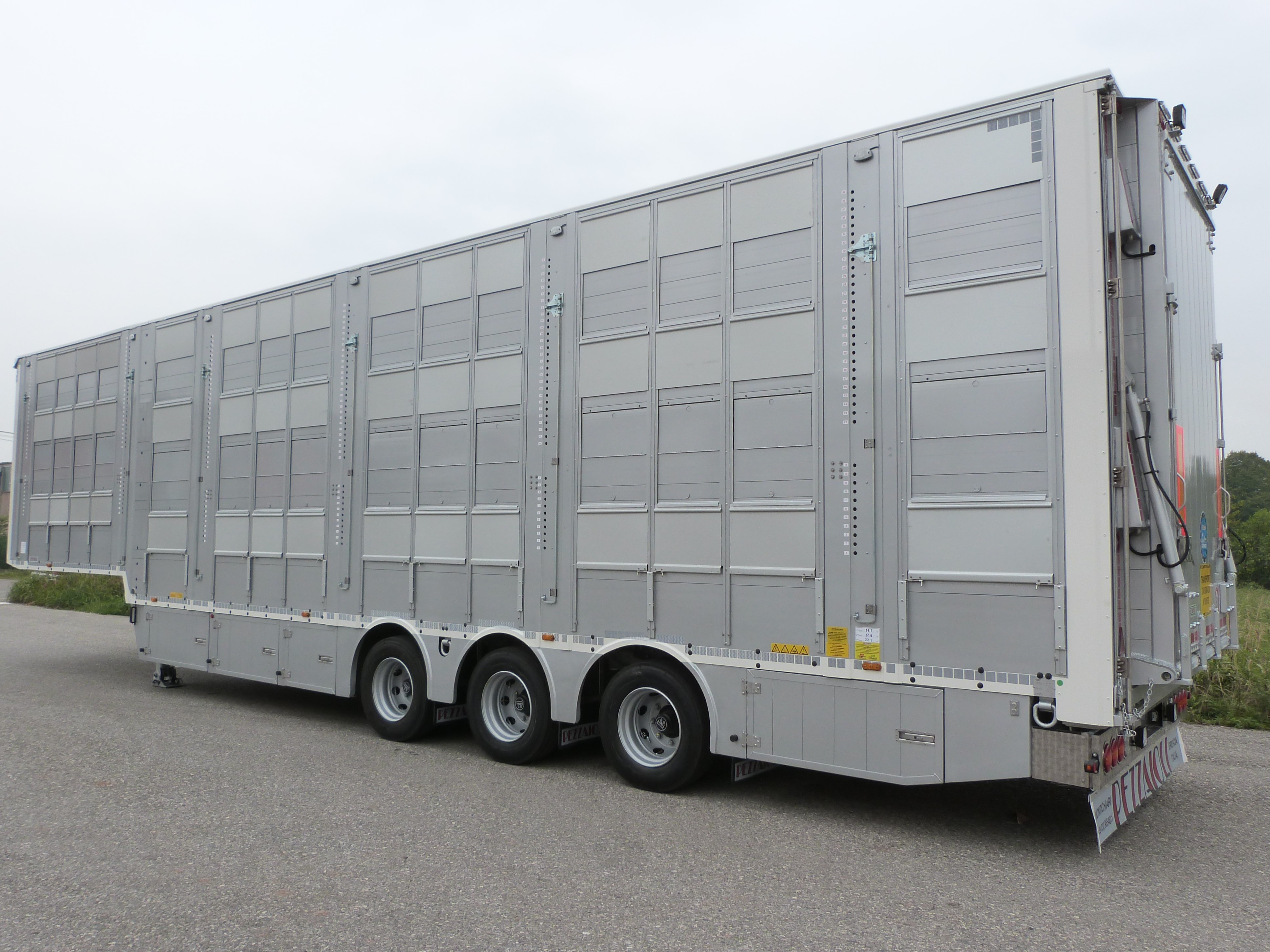

Body: box unit for livestock 2+2, 2+3, 3+3, 3+4 or 4+4 loading decks with hydraulic controls, raising lowering roof on lower part and on goose neck, side doors and back doors, wide tool boxes under the body, internal and external working lights

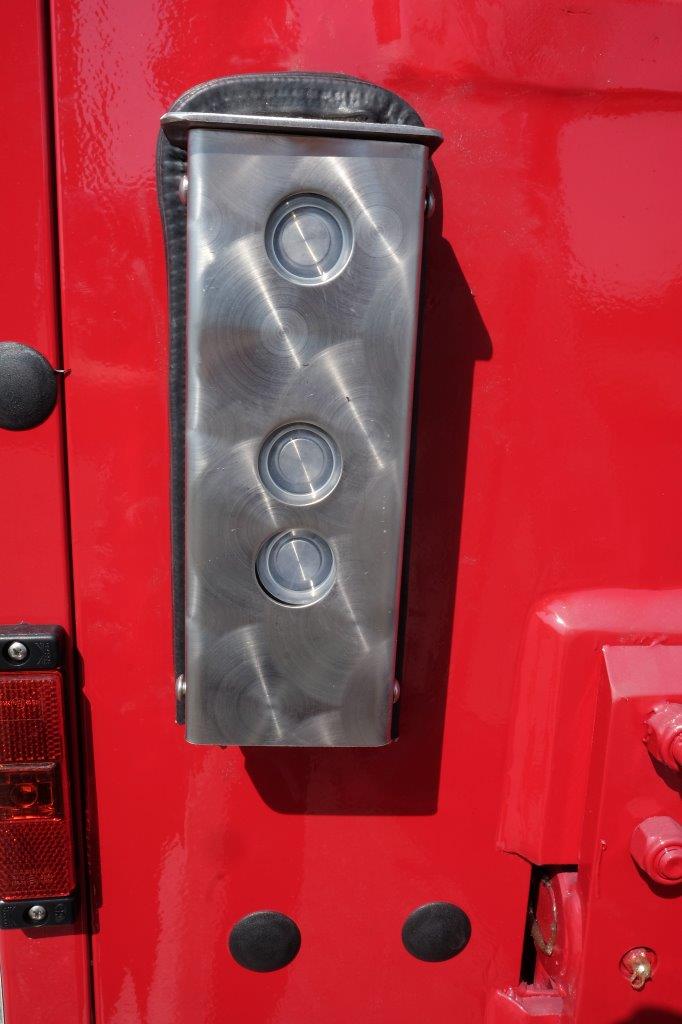

Electrohydraulic system: completed with automatic safety device in accordance with Machines Directive and Work Safety Institute (approval TUV n° 24 03 9761 002)

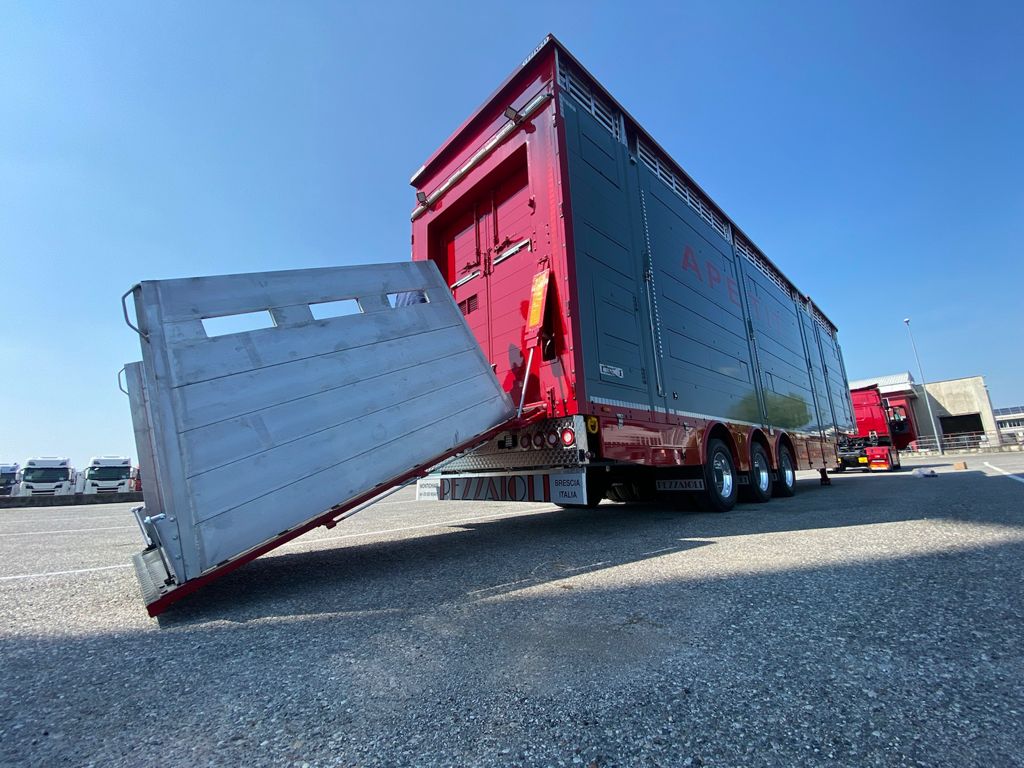

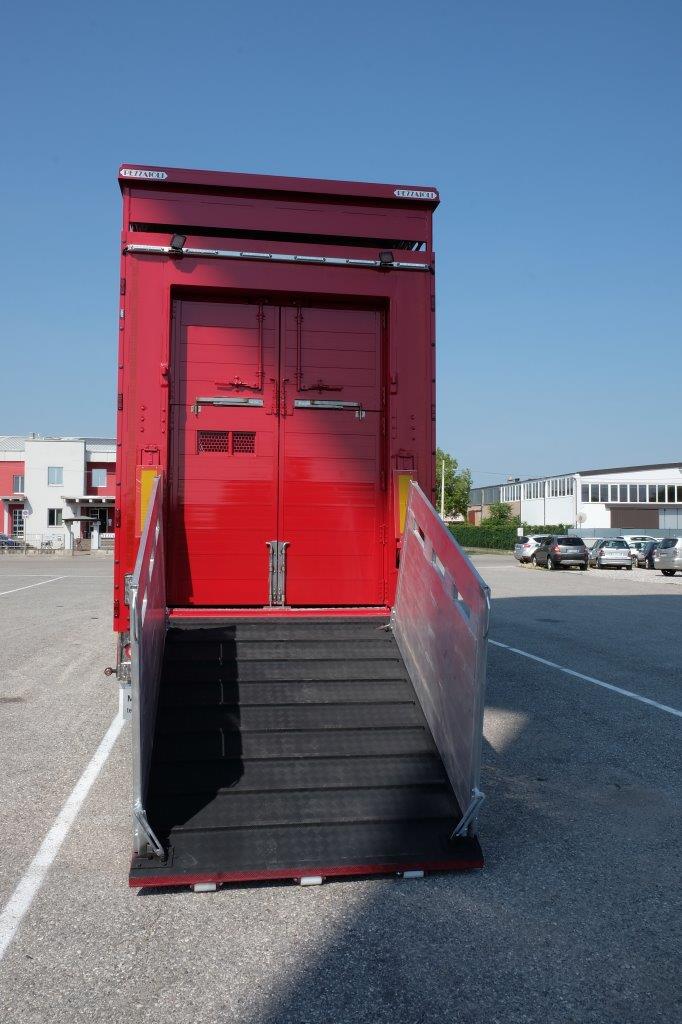

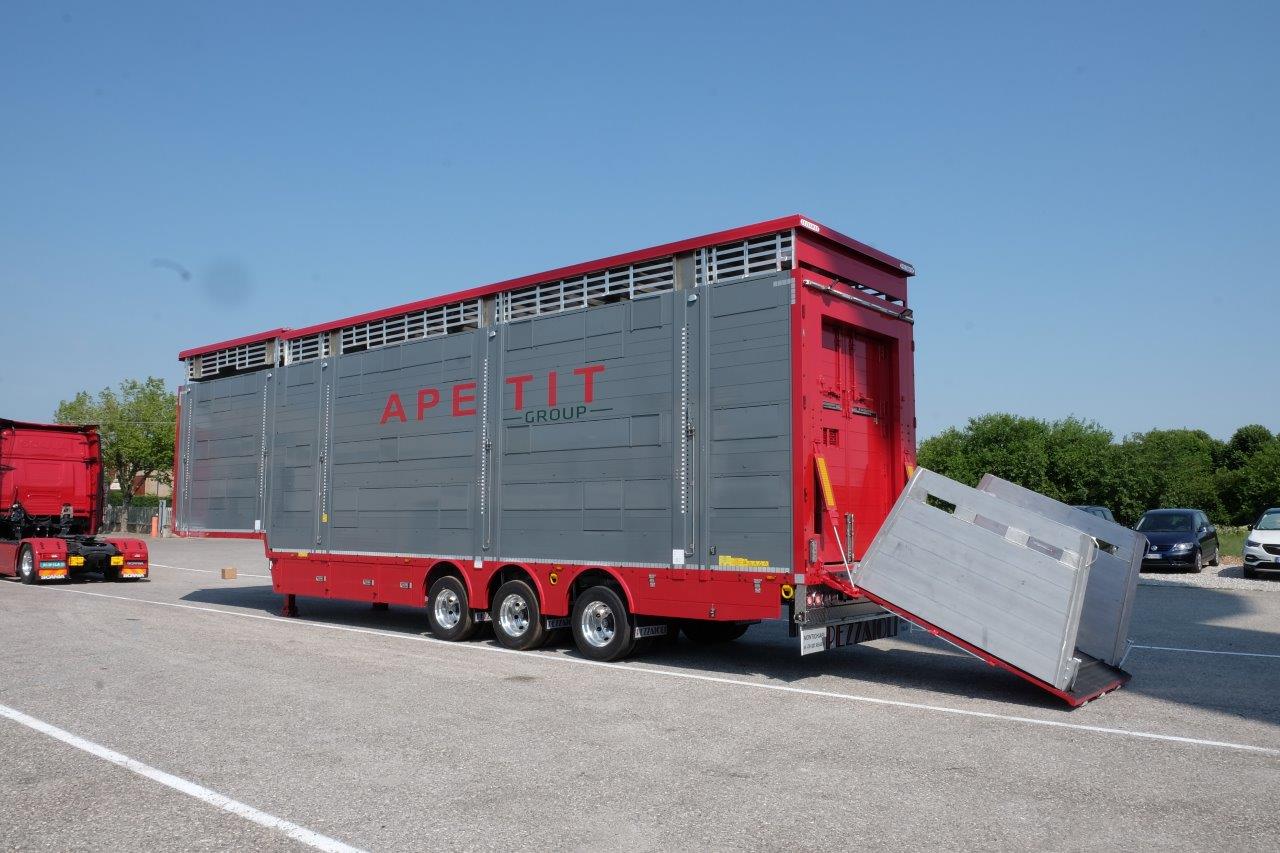

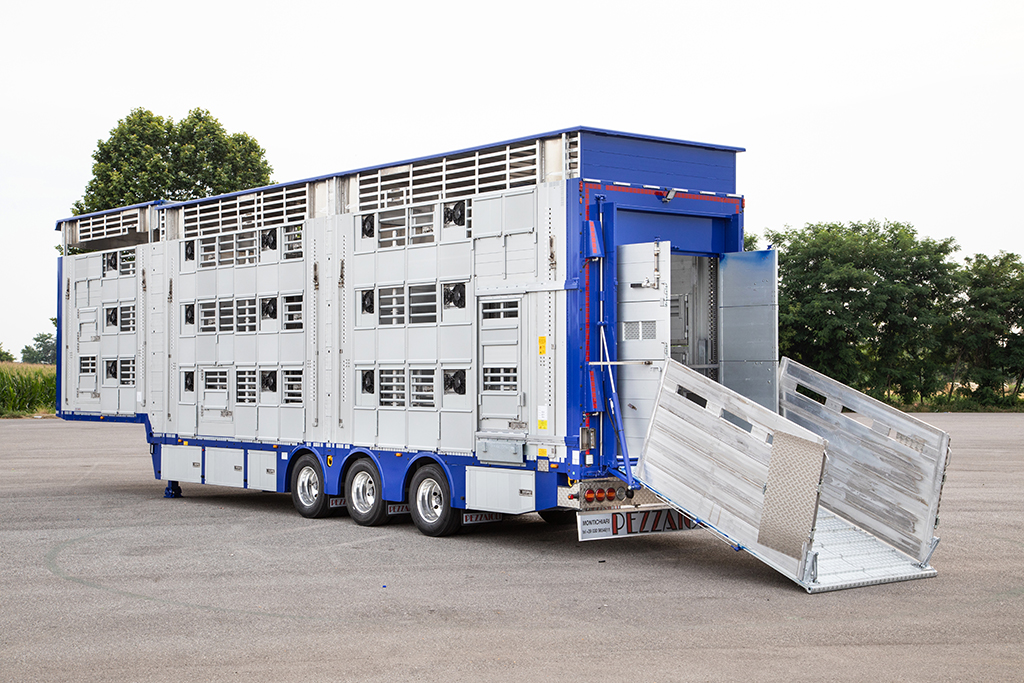

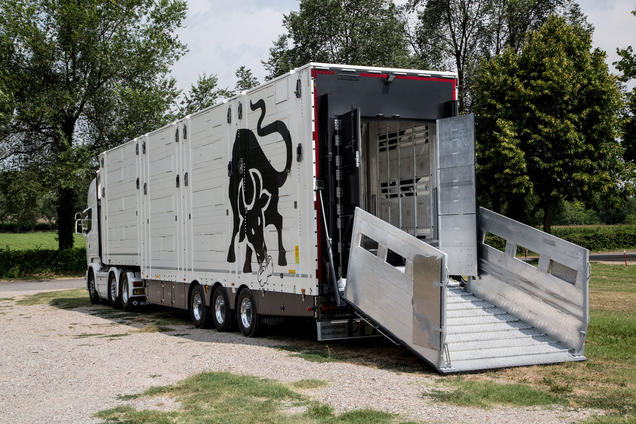

Loading ramp: hydraulically controlled, anti-slip, with incorporated side guards and working as barn doors if necessary

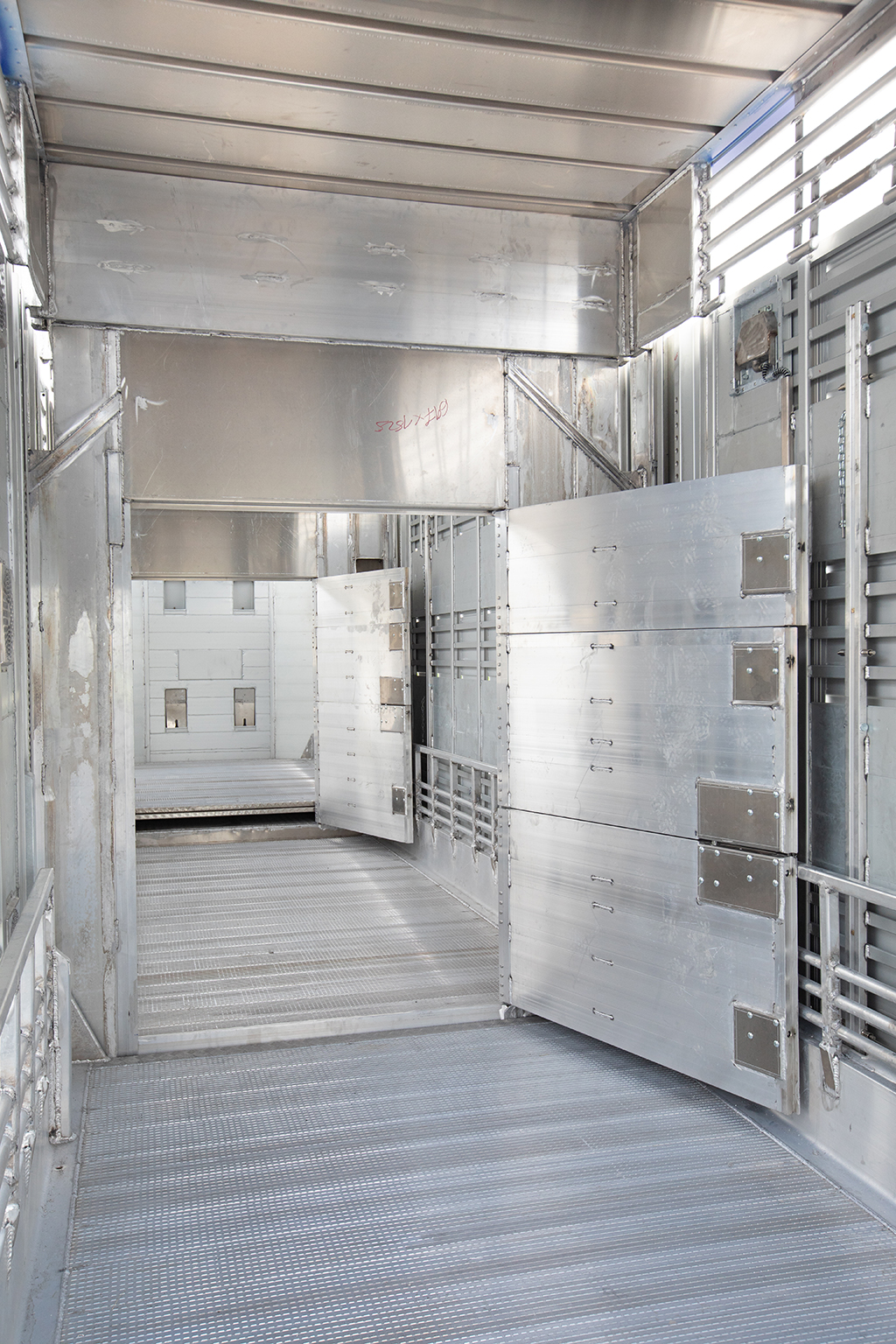

Partition gates: in aluminium or zinc coated steel with over-flap for larger animals
Ventilation system: autonomous with 15 side fans Ø 255 mm. Max air flow 19500 m3/h

  • Vents closed with aluminium flaps (+300 Kg)
  • Automatic drinking system with water tank (+250 Kg)
  • Side fans (+ 50 Kg)
  • Drink-water heating
  • Remote control for decks and roof
  • GPS tracking system integrated with temperature and opening doors recording
