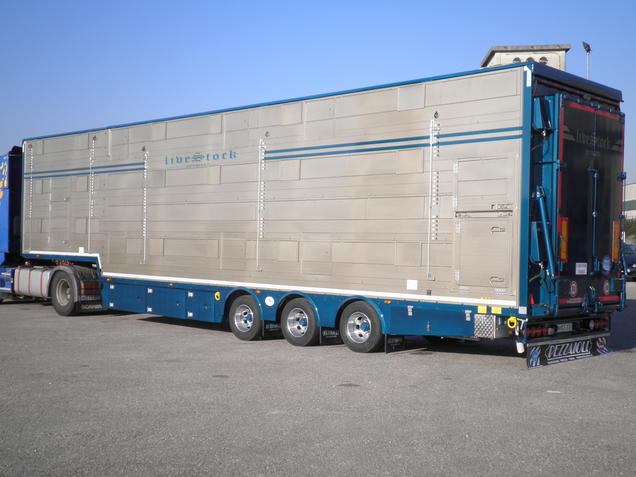

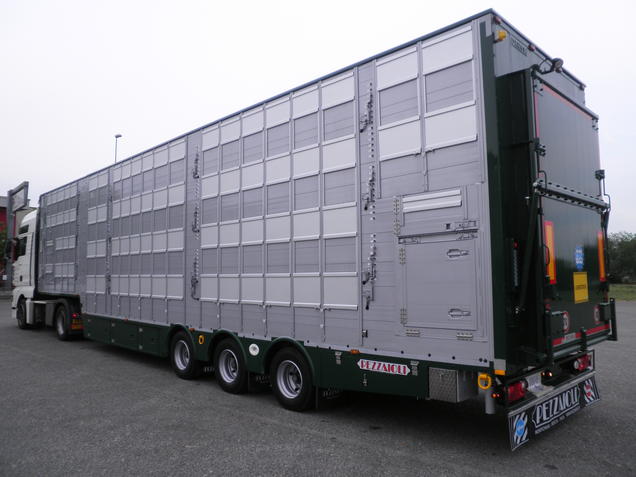

SBA31


TECHNICAL CHARACTERISTICS Download PDF

Chassis: Self-supporting anti-corrosion Aluminium structure
Axles: fixed, single 10000 Kg capacity
Brakes: drum Ø 300 x 200 mm
Braking system: pneumatic in 2 sections according to CEE regulations with 2 channel EBS and RSS
Parking Brakes: spring cylinders (maxi brakes) with pneumatic controls
Suspensions: pneumatic type with electronic control
Wheels: disc 17.5 x 6.75 and M spigot
Tyres: 245/70R17.5 143/141J twin
Fifth wheel: 2 according to regulations DIN demountable from below
Landing legs: two speed with rocking feet

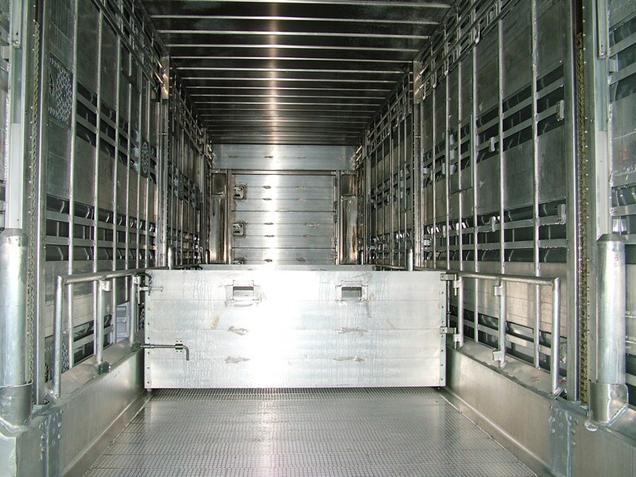

Body: van unit for livestock 2+2, 2+3, 3+3 or 3+4 loading decks with hydraulic control, raising lowering roof on lower part and on swan neck, side doors and back doors, wide tool boxes under body to store partition gates, internal and external working lights
Electrohydraulic system: autonomous completed with automatic safety device in accordance with Machines Directive and Work Safety Institute (approval TUV n° 24 03 9761 002)
Loading ramp: with hydraulic control, anti-slip, with incorporated side barriers and working as barn doors if necessary
Partition gates: in aluminium or zinc coated steel with over flap for larger animals

OPTIONALS
  • Vents on sided to be closed with aluminium flaps (+300 Kg)
  • Automatic drinking system with water tank (+250 Kg)
  • Side fans (+ 50 Kg)
  • Heating system for drinking system
  • Remote control for decks and roof
