SBA63-TD


TECHNICAL CHARACTERISTICS Download PDF

Chassis: Self-supporting anti-corrosion Aluminium structure

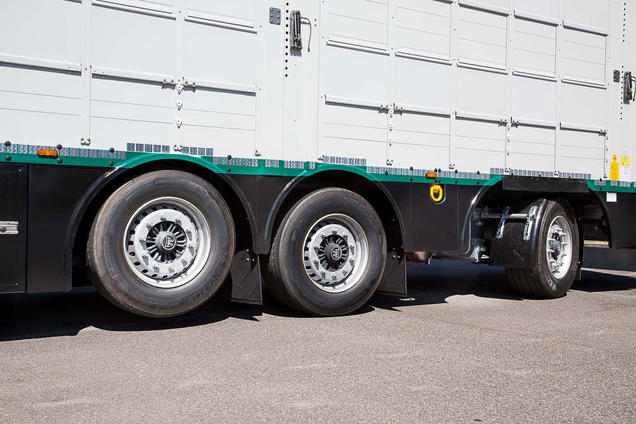

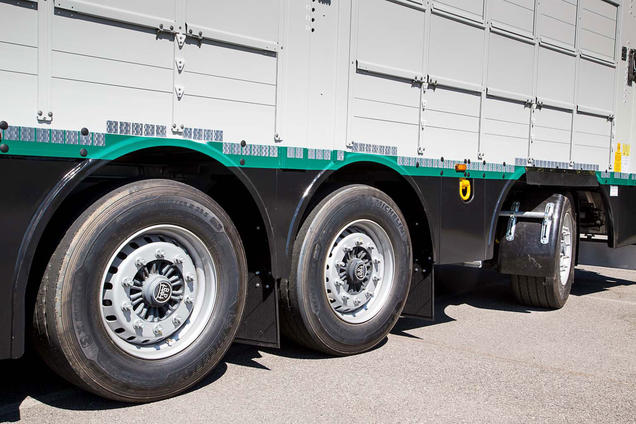

Axles: fix, single, 9000 Kg capacity, 1st axle liftable

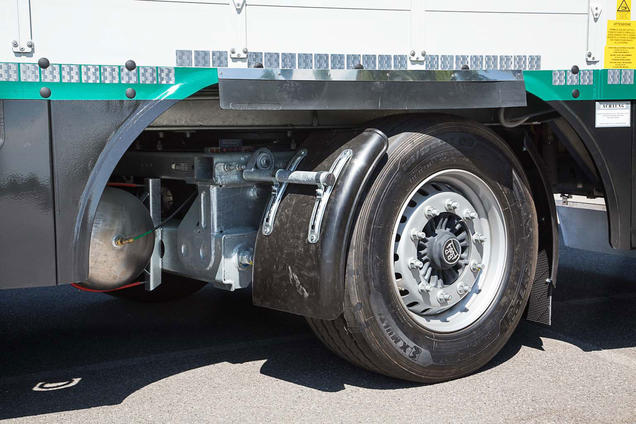

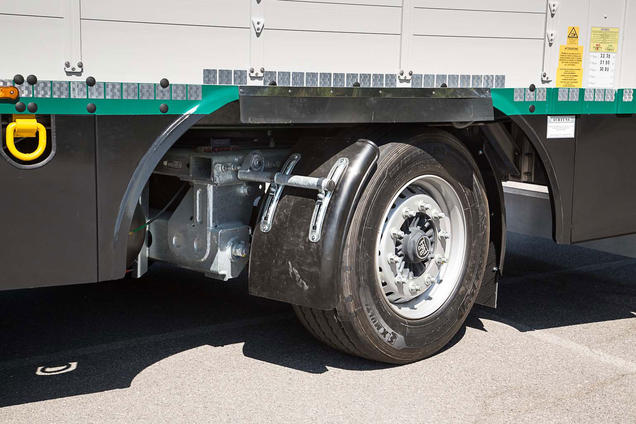

Steering: 3rd axle with forced steering managed by the truck fifth-wheel and mechanically controlled
Brakes: disc Ø 430 mm
Braking system: pneumatic with two lines according to ECE R13-11 with Electronic Braking System (EBS) and RSS
Suspensions: pneumatic type with electronic control

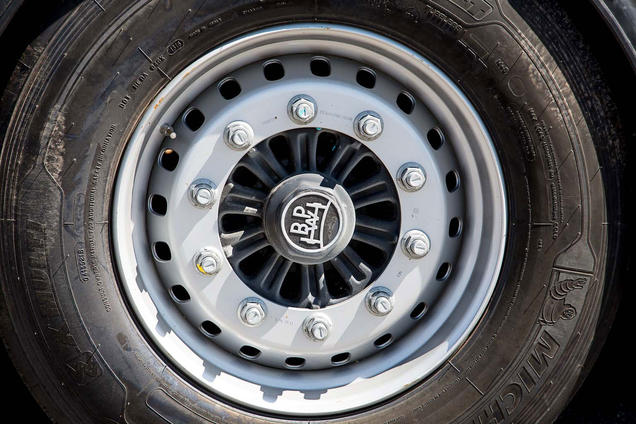

Wheels: disc 22.5 x 11.75 - M spigot
Tyres: 385/65R22.5 or 385/55R22.5 160 J single
Accessories: 2" King Pin in accordance with EEC standards demountable from below; 24  t landing legs with two speed and rocking feet; spare wheel carrier;  side guards; mudguards; wheel chock; tool box

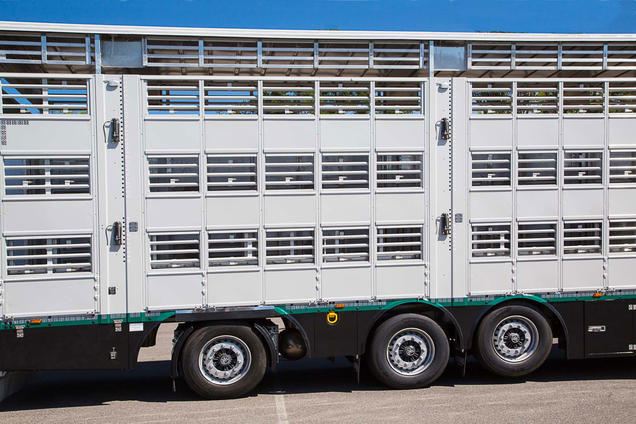

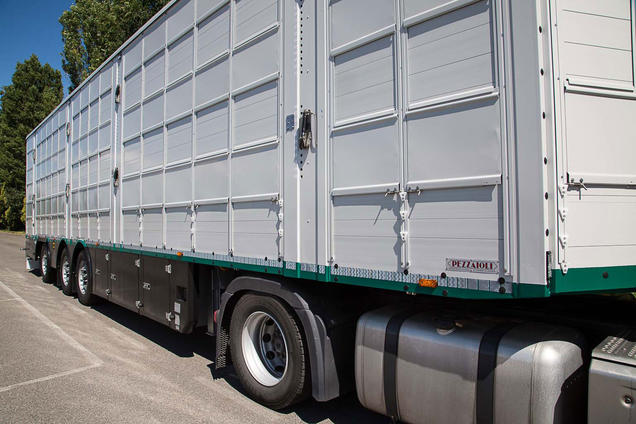

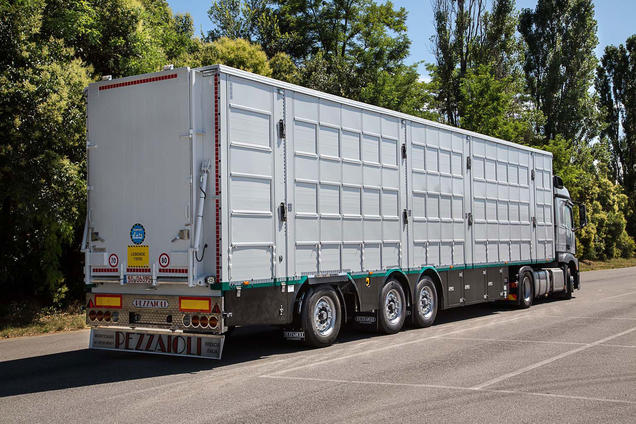

Body: box unit for live stock transport with 2 or 3 or 4 loading deck;  insulated and liftable roof; internal working lights and fan system

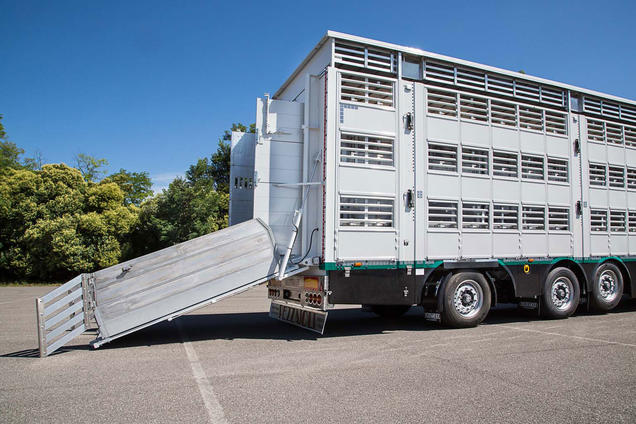

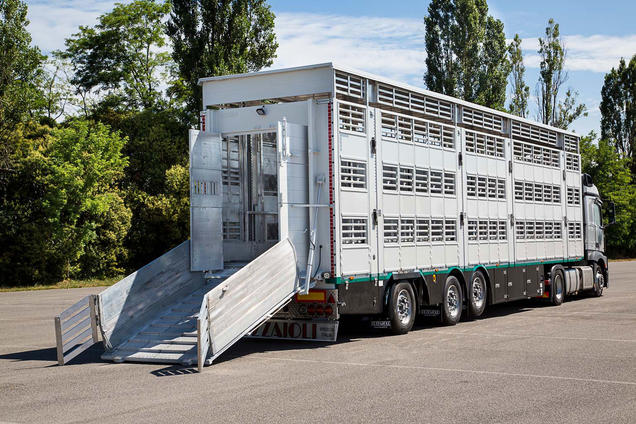

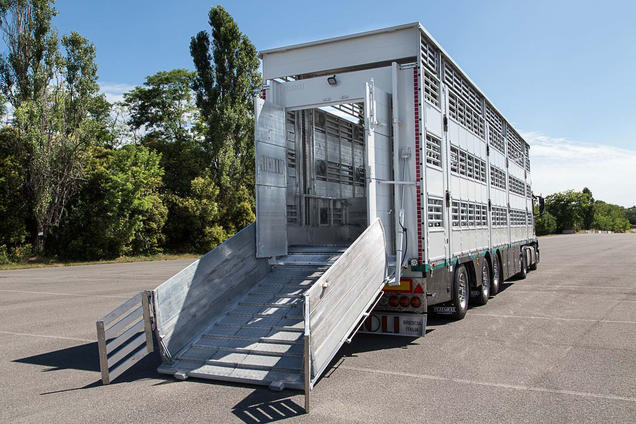

Rear loading bridge: hydraulically controlled, anti-slip, with incorporated side guards and working as barn doors if necessary
Electrohydraulic system: autonomous type with electro-pump and high capacity batteries,  completed with automatic safety device in accordance with Machines  Directive and Work Safety Institute
Drinking system: automatic type with nipples for pigs and water tank 400 l
Ventilation system: autonomous with 15 side fans Ø 255 mm. Total max. flow 19500 m3/h
Partition gates: aluminium swinging or foldable type

OPTIONALS
  • Independent movement for loading floor
  • Rear loading bridge with hydraulic movement
  • Positioning GPS system integrated with temperature and opening doors recording
