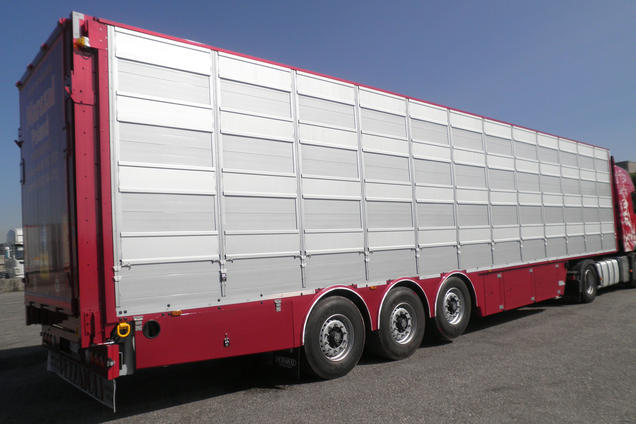

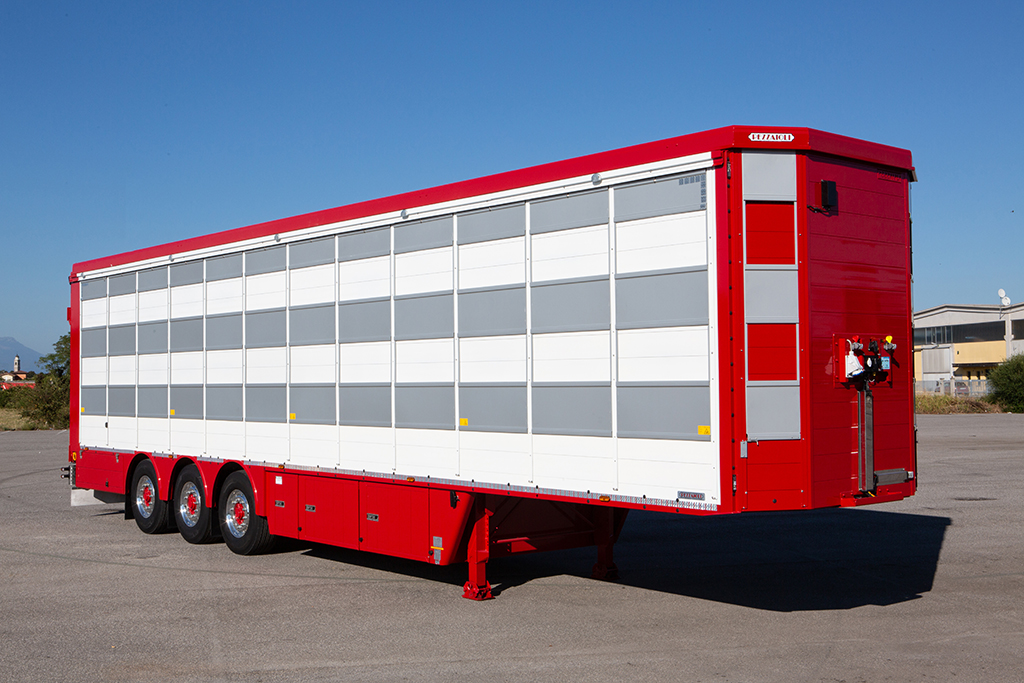

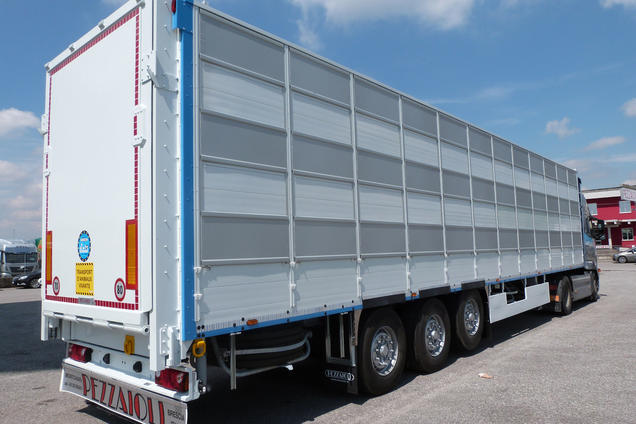

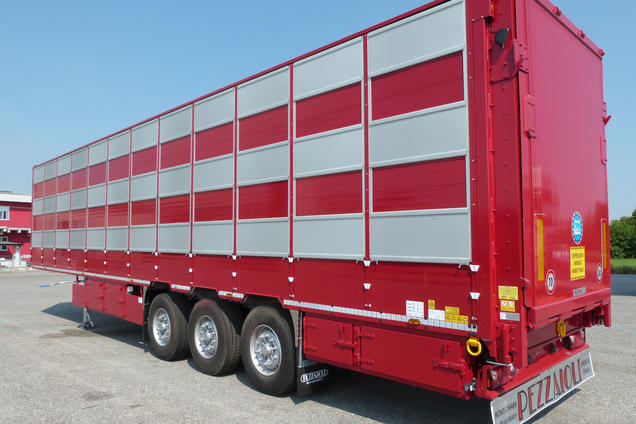

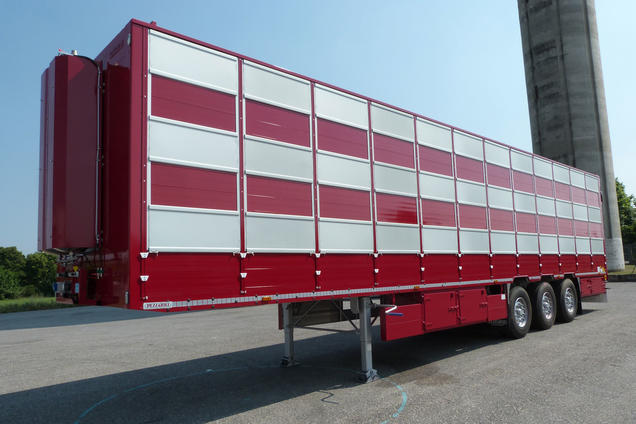

SBA63 PIG TRANSPORTER


TECHNICAL CHARACTERISTICS Download PDF

Chassis: self-supporting anti-corrosion Aluminium structure
Axles: fixed, single, 9000 Kg capacity, 1st axle liftable
Brakes: disc Ø 430 mm
Braking system: pneumatic with two lines according to CEE regulations with Electronic Braking System (EBS ) and RSS
Parking brake: spring cylinder (maxi brake) with pneumatic control
Suspensions: pneumatic type with electronic control
Wheels: disc 22.5 x 11.00 with M spigot
Tyres: 385/65R22.5 or 385/55R22.5 160 J single
King pin: 2" king pin in accordance with DIN standards demountable from below
Landing legs: with 2 speed and rocking feet with length compensation

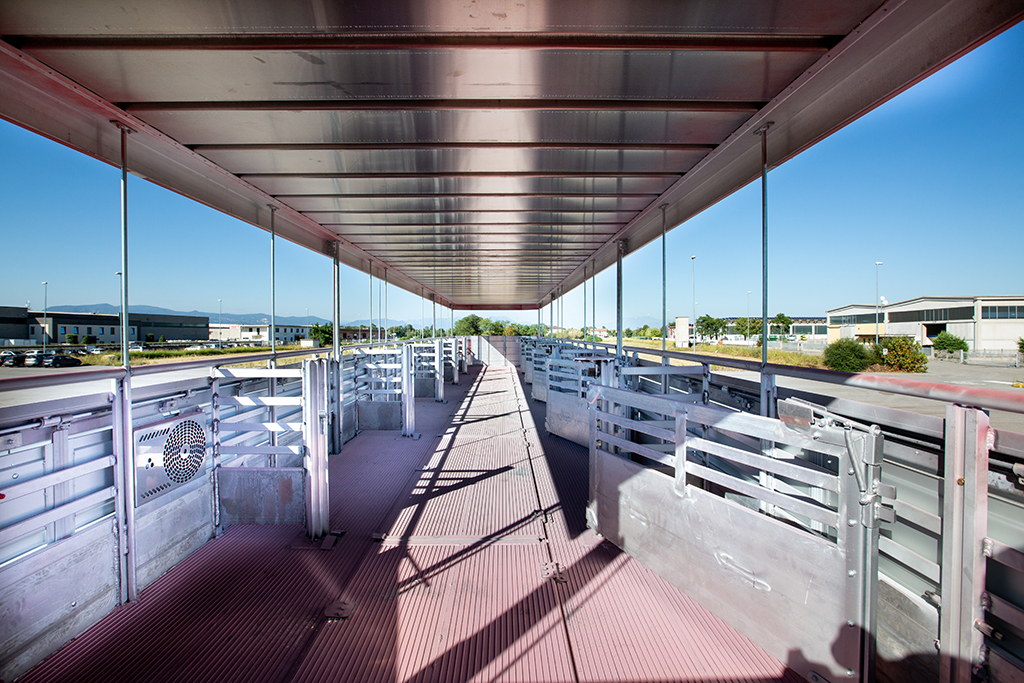

Body: self-supporting body unit with 3 fixed flap decks, flap roof with trap  doors, rear doors, side vents with sliding panels, internal and  external working lights

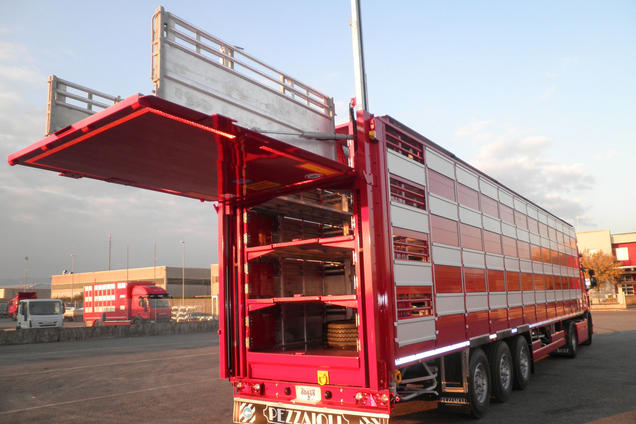

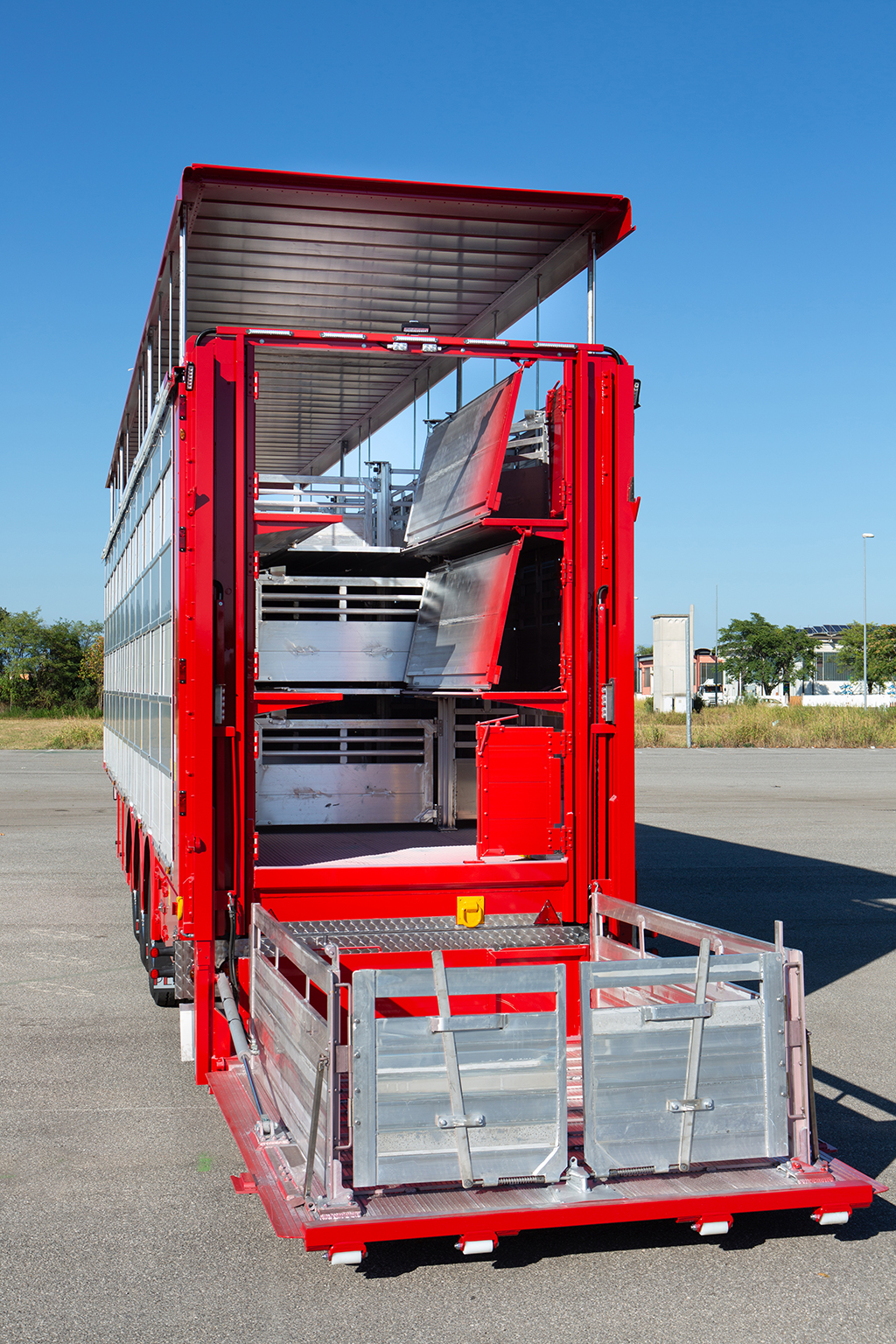

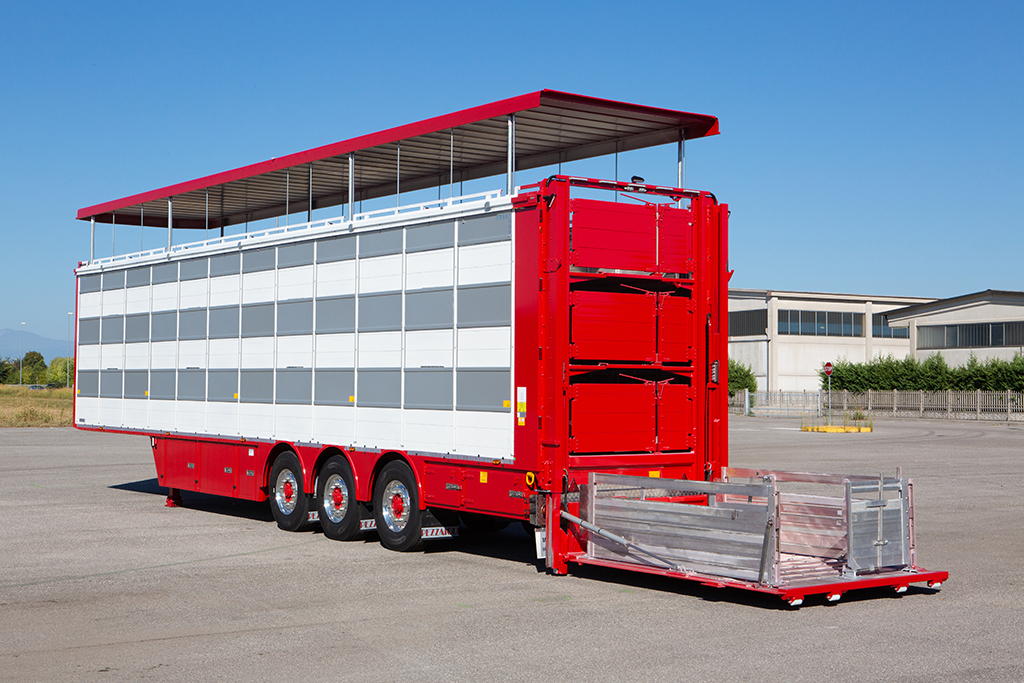

Loading ramp: hydraulic loading lift with electro-hydraulic control box, high capacity batteries, lifting capacity 1500 Kg
Electro-hydraulic system: autonomous type with electro-pump and high capacity batteries with  automatic safety devices in accordance with Machines Directive and Work  Safety Institute (TUV approval n° 24 03 9761 002)
Drinking system: automatic type with nipples for pigs and water tank 500 l
Partition gates: in Aluminium suitable to divide each deck into n° 6 boxes

OPTIONALS
  • Fan ventilation system
  • 3° axle self-steering by contact on road surface (+200 Kg)
  • Positioning GPS system integrated with temperature control and opening doors recording, data logger and GPRS transmission
