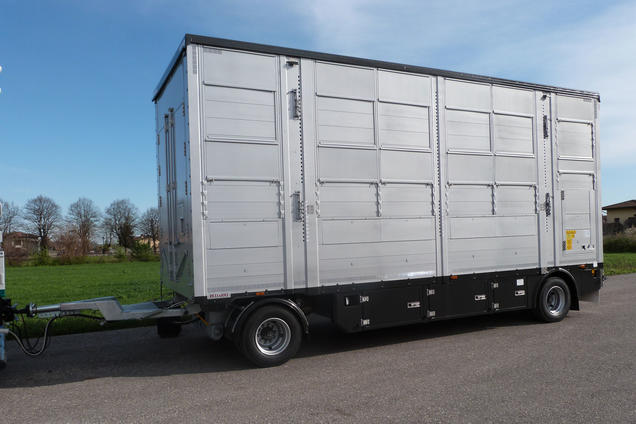

RBA21


TECHNICAL CHARACTERISTICS Download PDF

Chassis: Self-supporting anti-corrosion Aluminium structure
Axles: twin 10000 Kg capacity
Brakes: drum Ø 310x200 mm
Braking system: pneumatic with 2 lines according to ECE regulations with 4 channel EBS and RSS
Parking Brakes: spring brakes with pneumatic controls
Suspensions: pneumatic type with electronic control and integrated with front and rear stabilization bar
Wheels: disc 17.5 x 6.75 and M spigot
Tyres: 245/70R17.5 twin
Draw bar: extensible tow bar 12x50 mm - table bearing Ø 1200 mm
Body: box unit for livestock 2, 3, or 4 loading decks with hydraulic controls, raising lowering roof, side doors and back doors, wide tool boxes under the body, internal and external working lights
Electrohydraulic system: completed with automatic safety device in accordance with Machines Directive and Work Safety Institute. (approval TUV n° 24 03 9761 002)
Loading ramp: with hydraulic movement, anti-slip, with incorporated side guards and to work as barn doors if necessary
Partition gates: in aluminium or zinc coated steel with over-flap for larger animals
Roof: insulated type

OPTIONALS
  • Chiusure laterali con ribaltine in alluminio (+150 Kg)
  • Piani a comando indipendente (+500 Kg)
  • Porte anteriori con pedana di collegamento alla motrice (+100 Kg)
  • Sistema integrato di rilevazione posizione mediante GPS, temperature interne e apertura porte con registrazione dati e trasmissione GPRS
