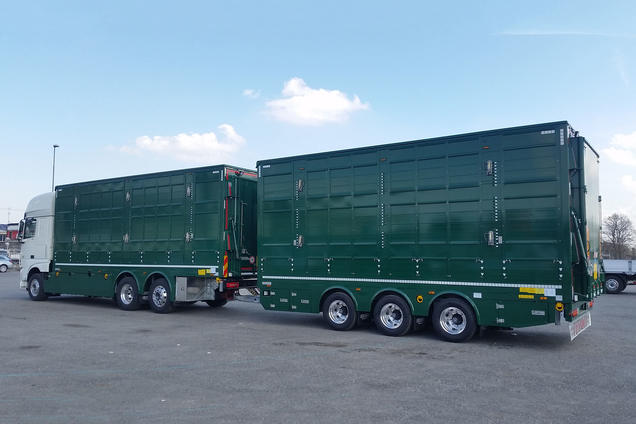

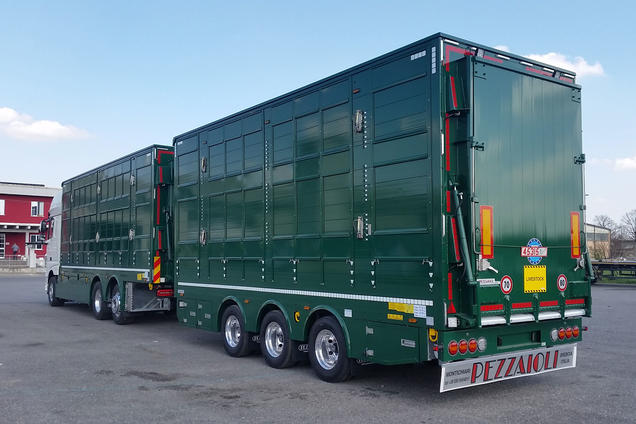

BBA32


TECHNICAL CHARACTERISTICS Download PDF

Chassis: Self-supporting anti-corrosion Aluminium structure
Axles: twin 10000 Kg capacity
Brakes: disk Ø 370 mm
Braking system: pneumatic with 2 lines according to ECE regulations with 4 channel EBS and RSS
Parking Brakes: spring brakes with pneumatic controls
Suspensions: pneumatic type with electronic control and integrated with front and rear stabilization bar
Wheels: disc 19.5 x 7.50 and M spigot
Tyres: 265/70R19.5 or 255/60R19.5 twin
Tow bar: extensible type 3x80 mm
Body: box unit for livestock 2, 3, or 4 loading decks with hydraulic controls, raising lowering roof, side doors and back doors, wide tool boxes under the body, internal and external working lights
Electrohydraulic system: completed with automatic safety device in accordance with Machines Directive and Work Safety Institute. (approval TUV n° 24 03 9761 002)
Loading ramp: with hydraulic movement, anti-slip, with incorporated side guards and to work as barn doors if necessary
Partition gates: in aluminium or zinc coated steel with over-flap for larger animals
Roof: insulated type

OPTIONALS
  • Vents on sided to be closed with aluminium flaps (+300 Kg)
  • Automatic drinking system with water tank (+250 Kg)
  • Heating system for drinking system
  • Positioning GPS system integrated with temperature and opening doors recording
