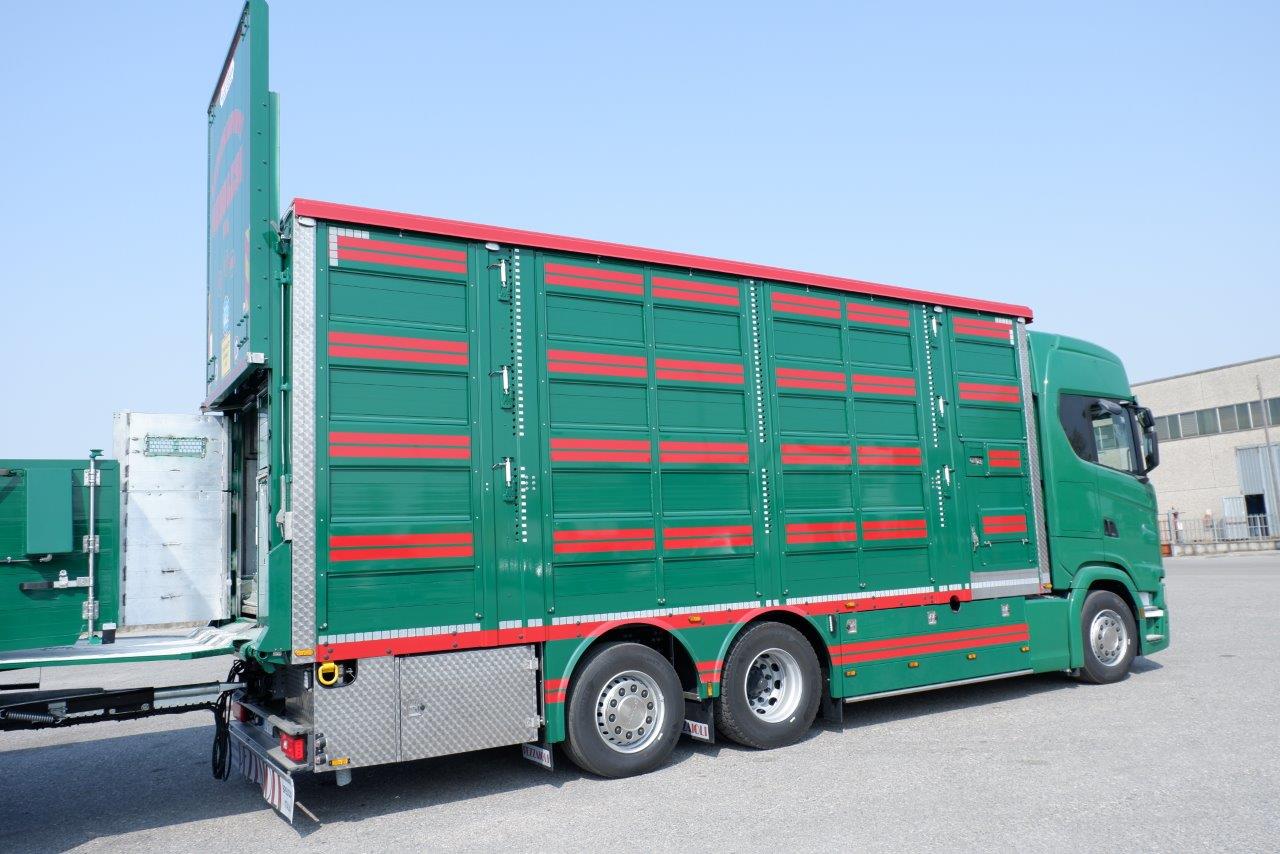

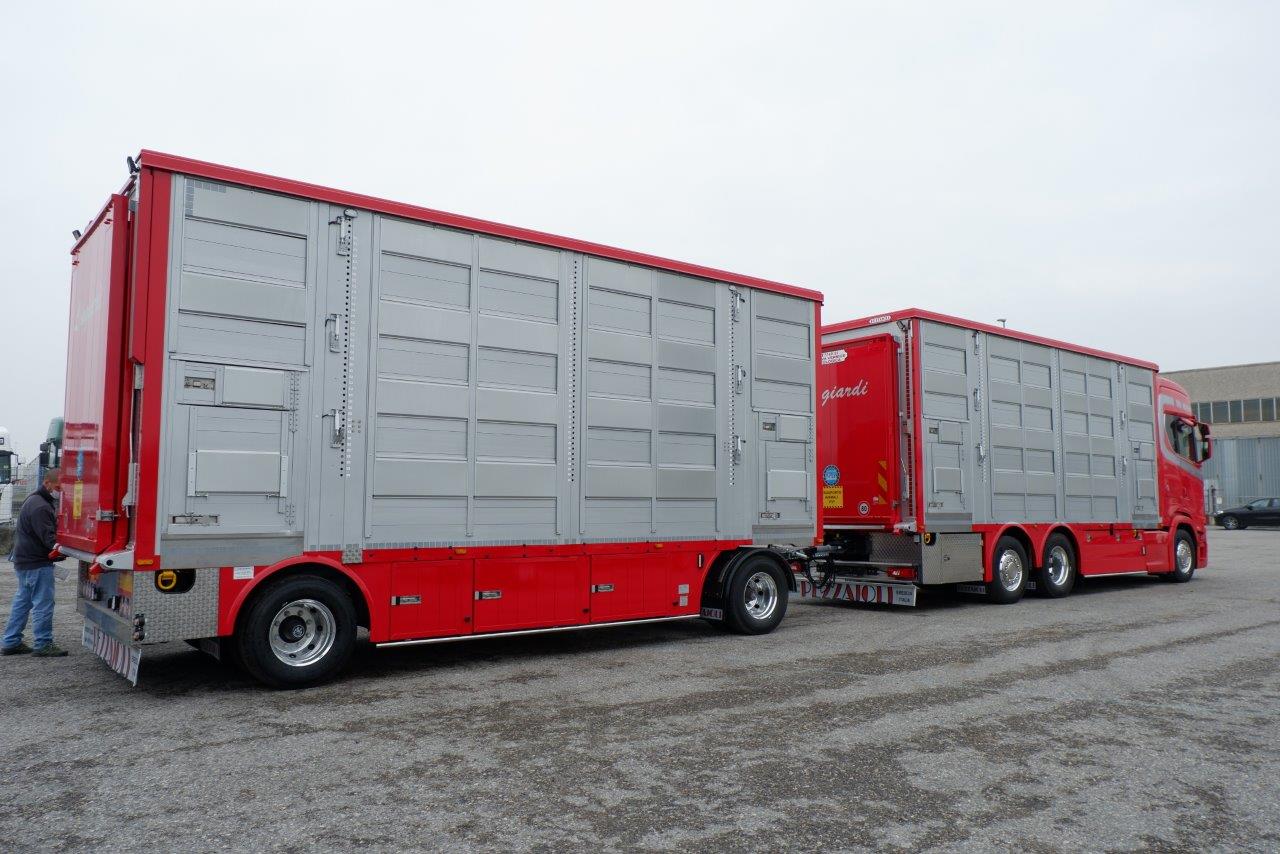

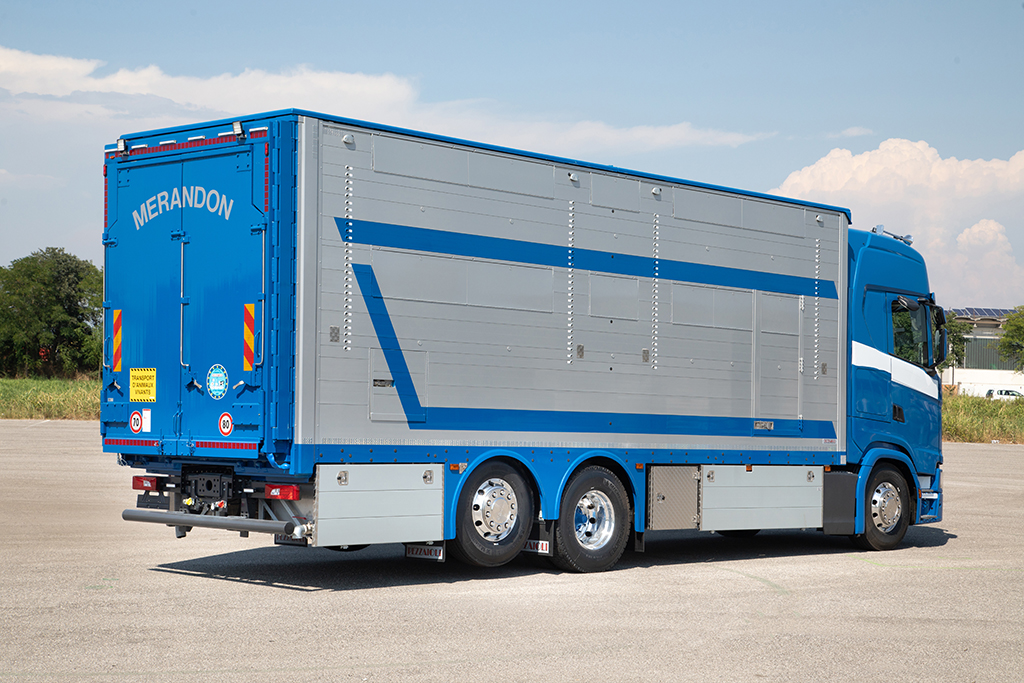

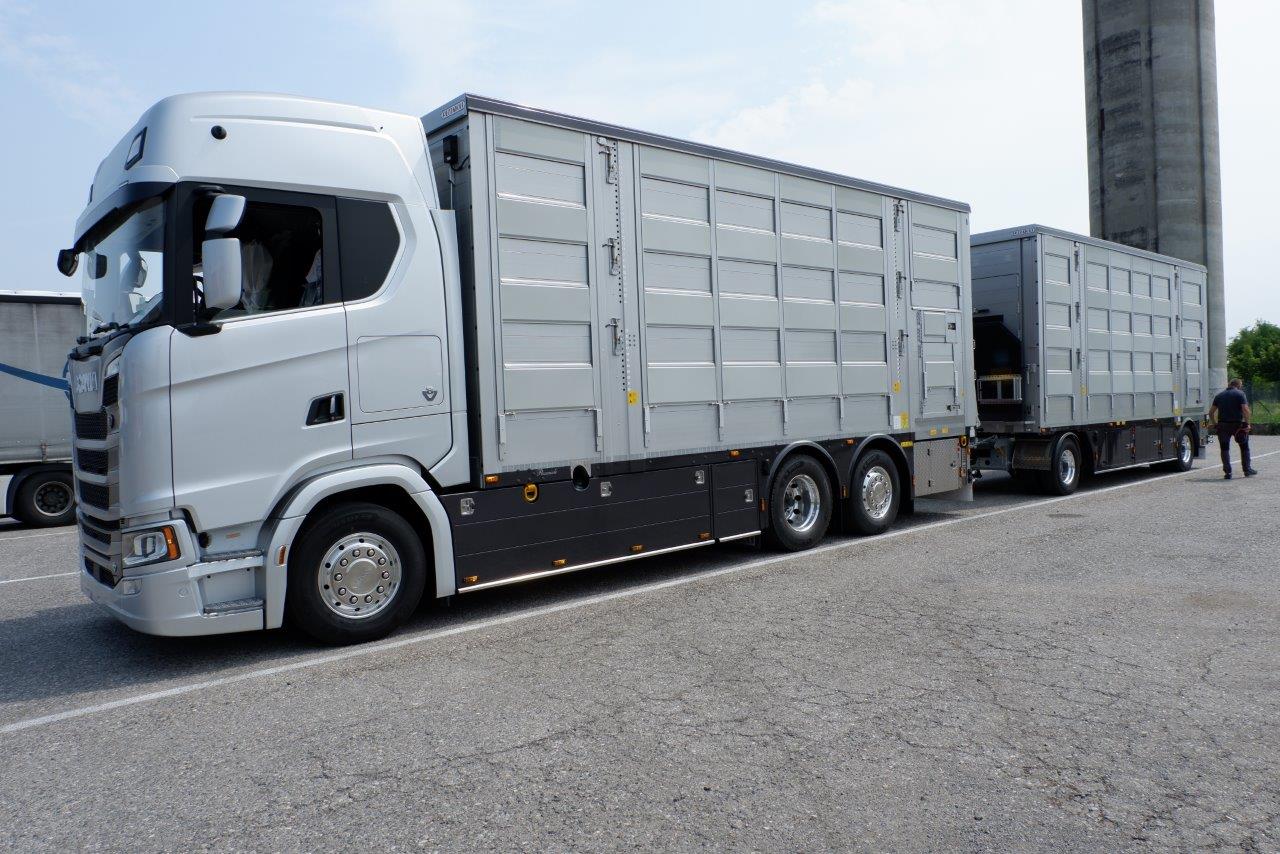

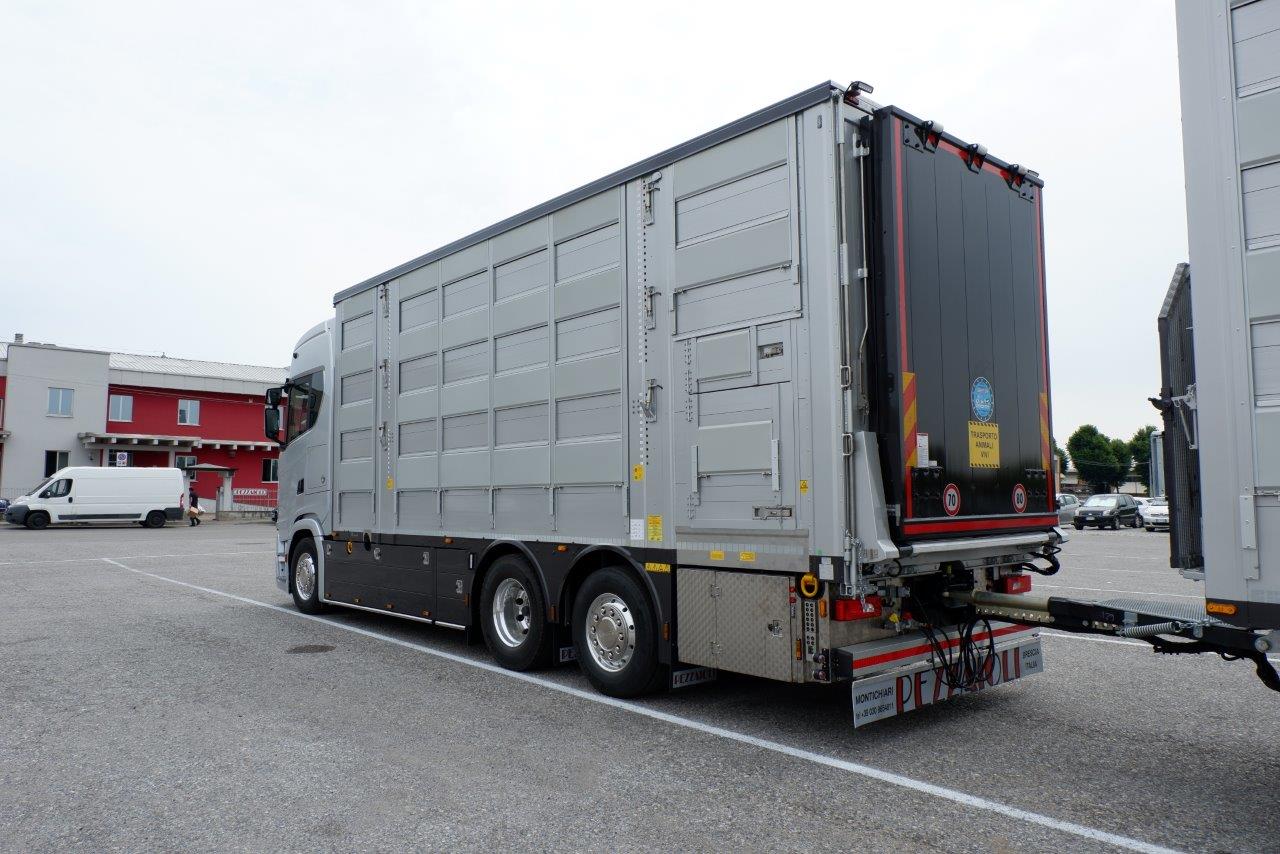

3 axle units


TECHNICAL CHARACTERISTICS Download PDF

Structure:self-supporting anti-corrosion Aluminium structure connected to the main chassis by means of galvanized counter-frame

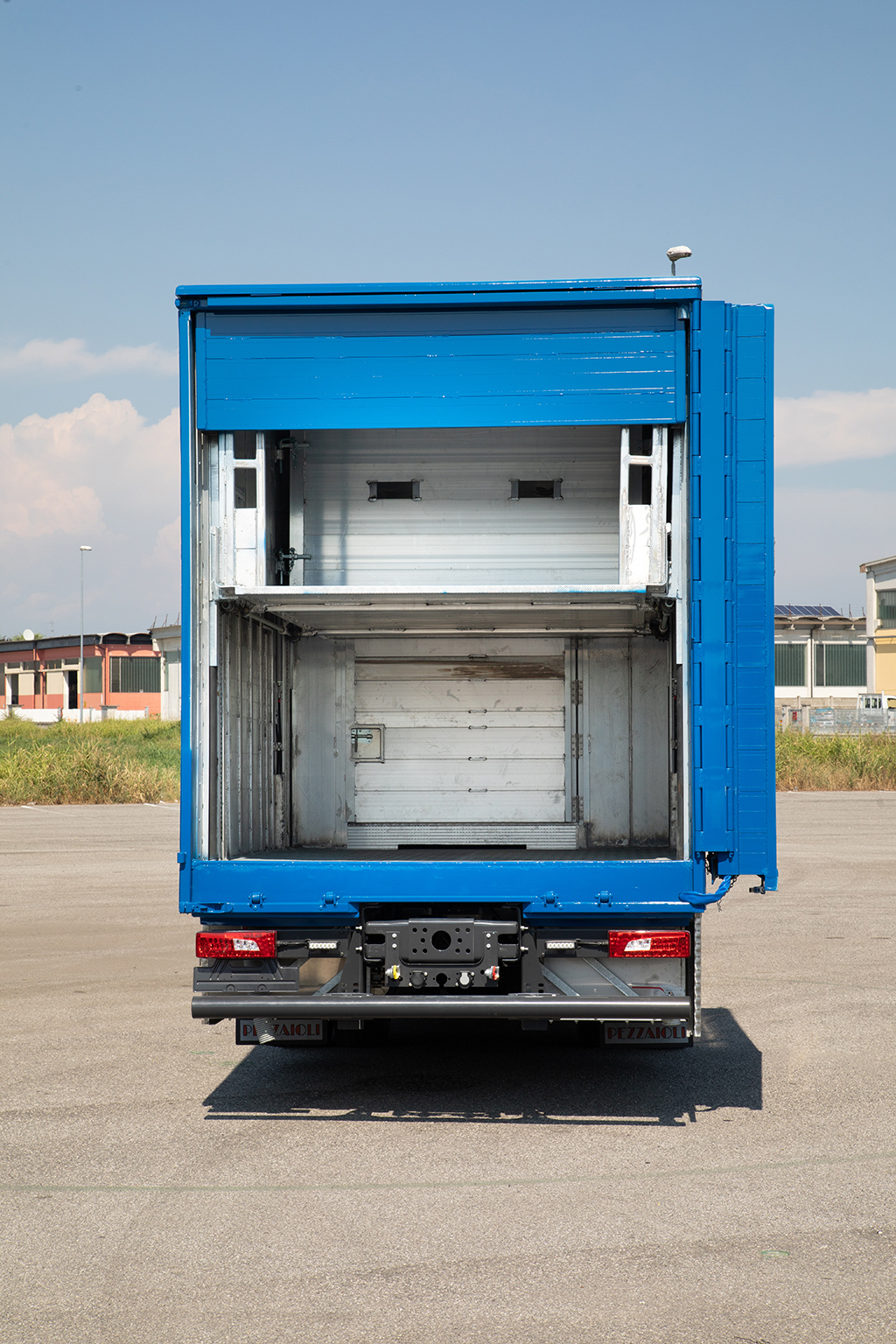

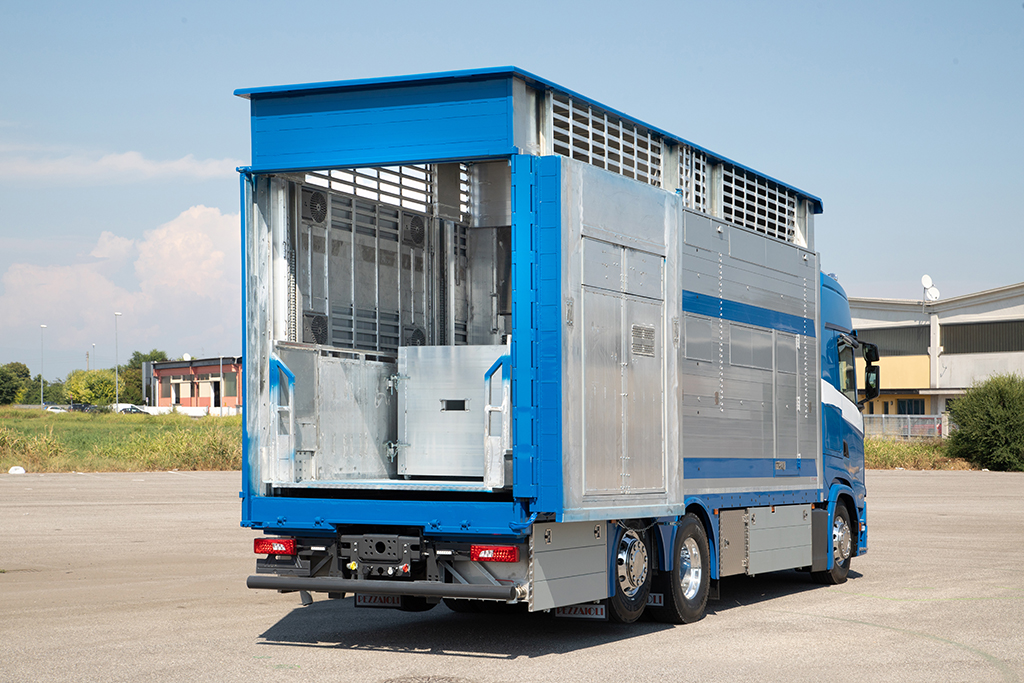

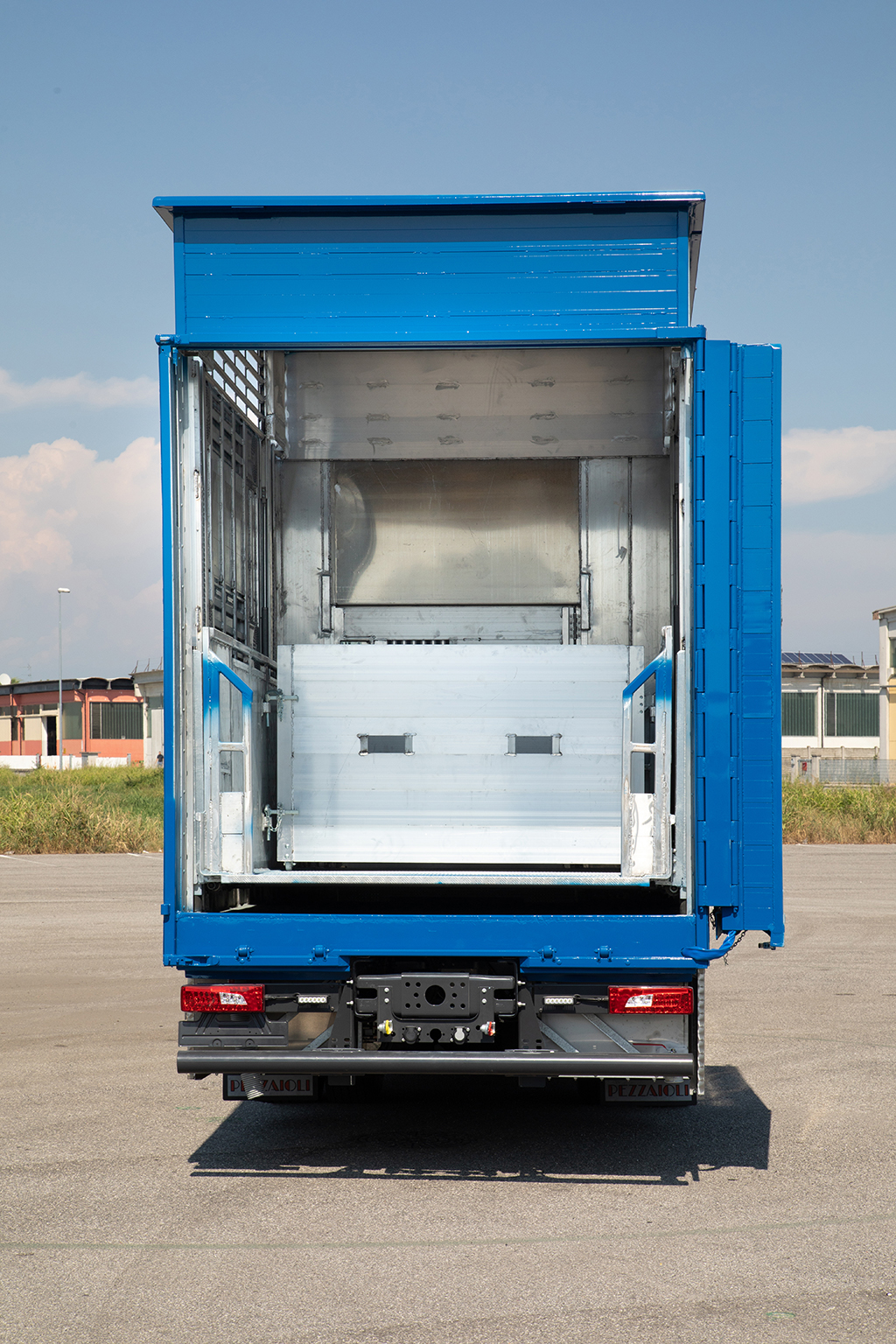

Box unit: self-supporting box unit with 2, 3, or 4 hydraulically powered loading decks, hydraulic roof, side and rear doors, oil tank, tool box; internal and external working lights
Hydraulic: complete with automatic safety devices in accordance with Machines Directive and Work Safety Institute( TÜV approval n° 24 03 9761 002 )

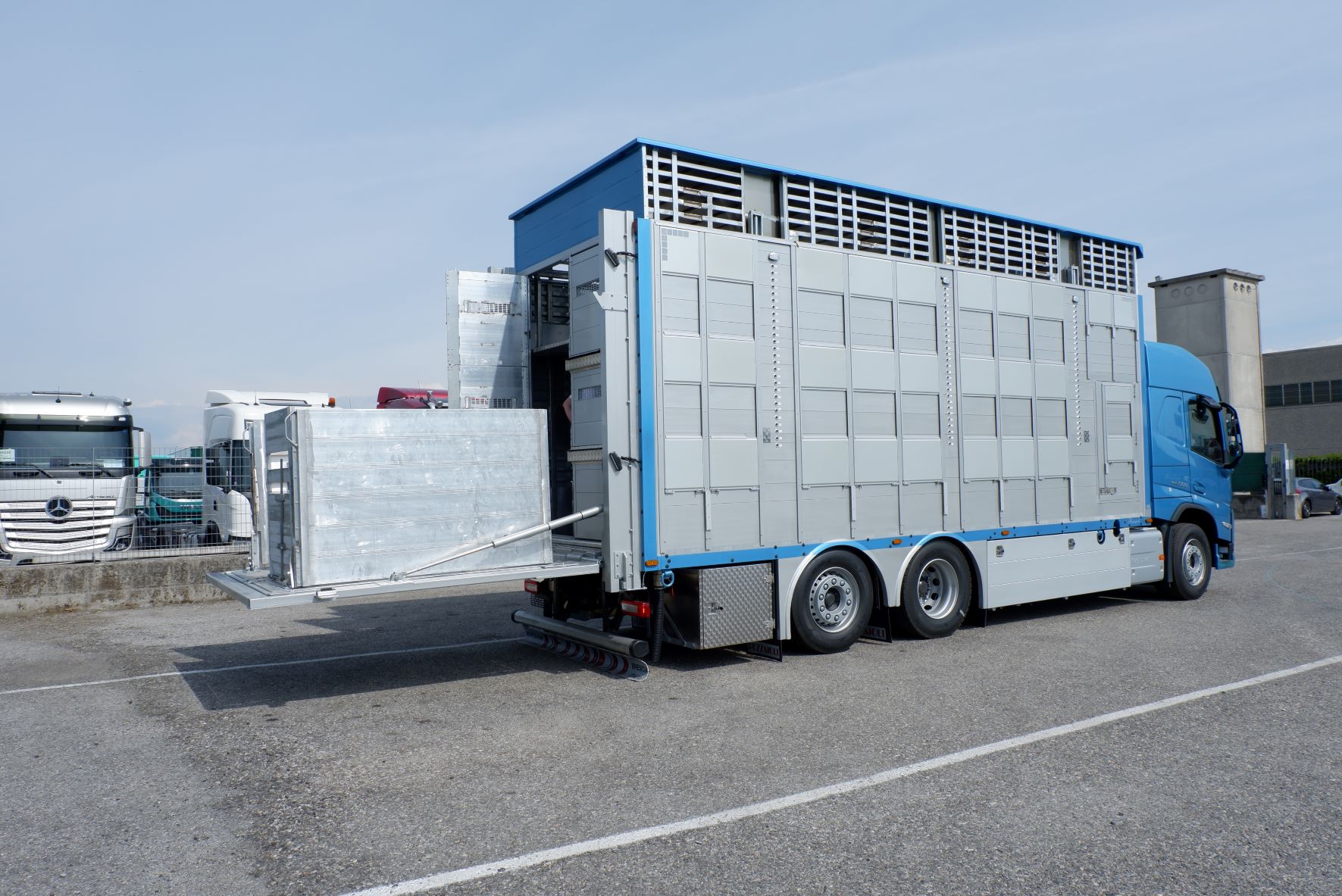

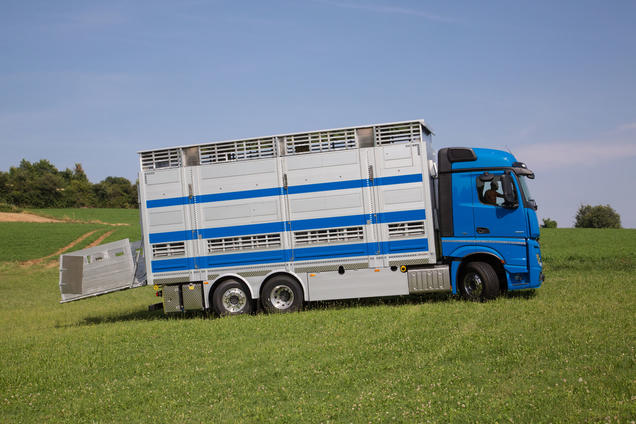

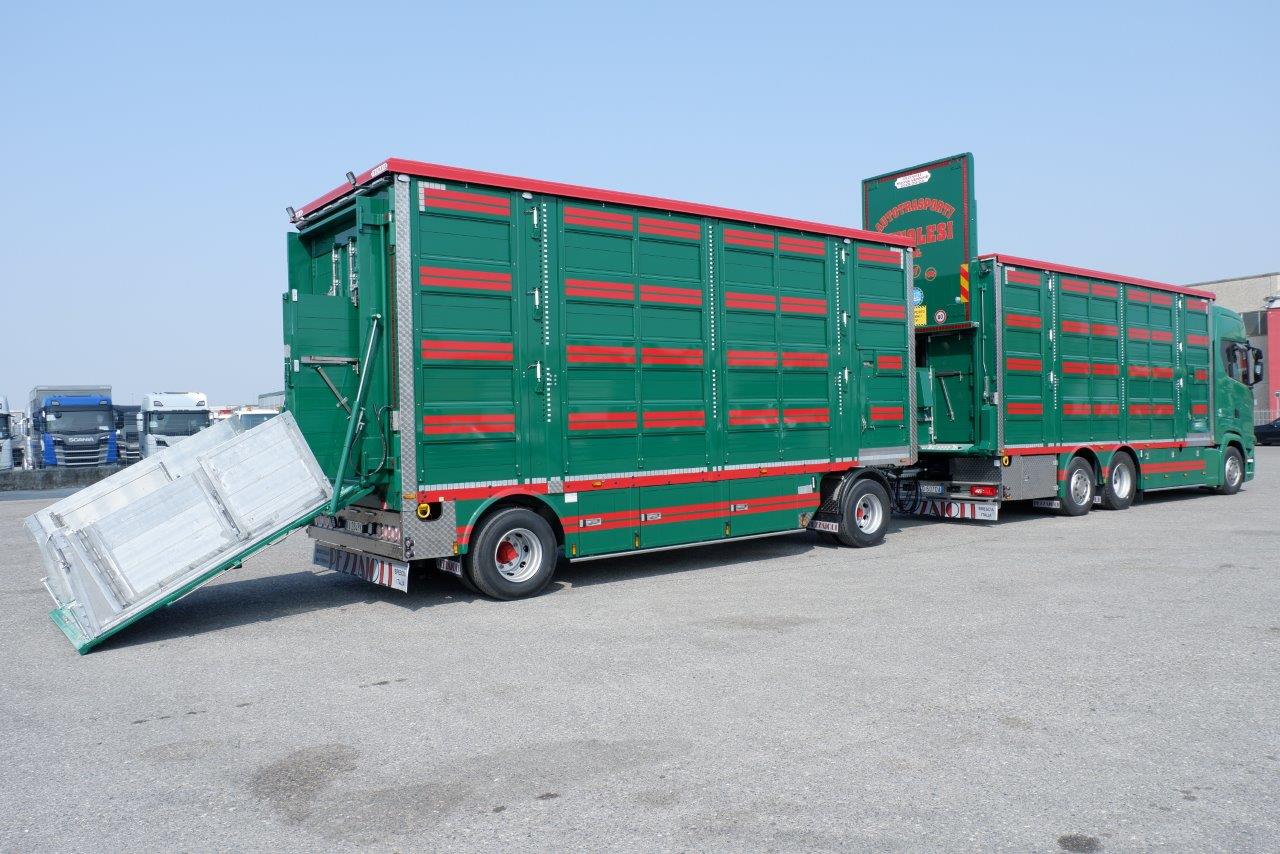

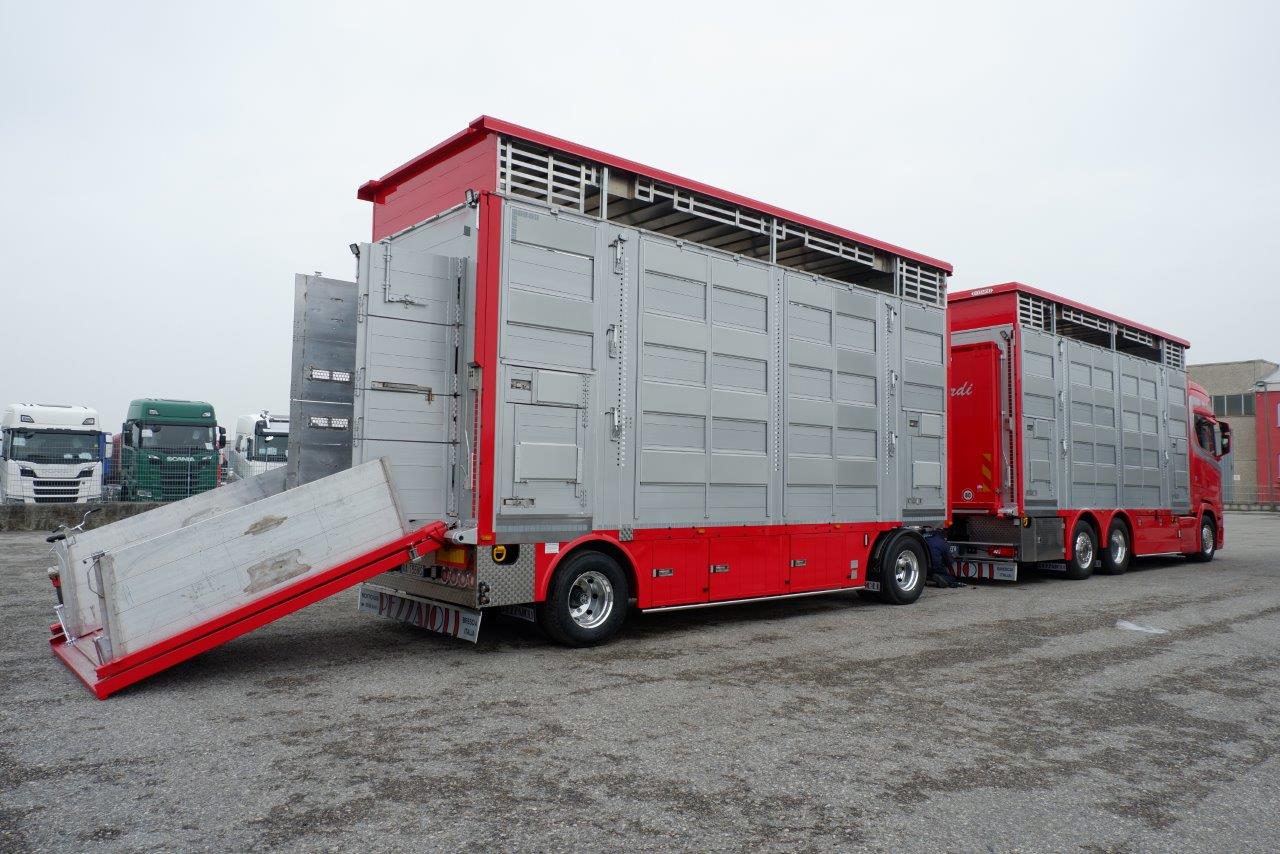

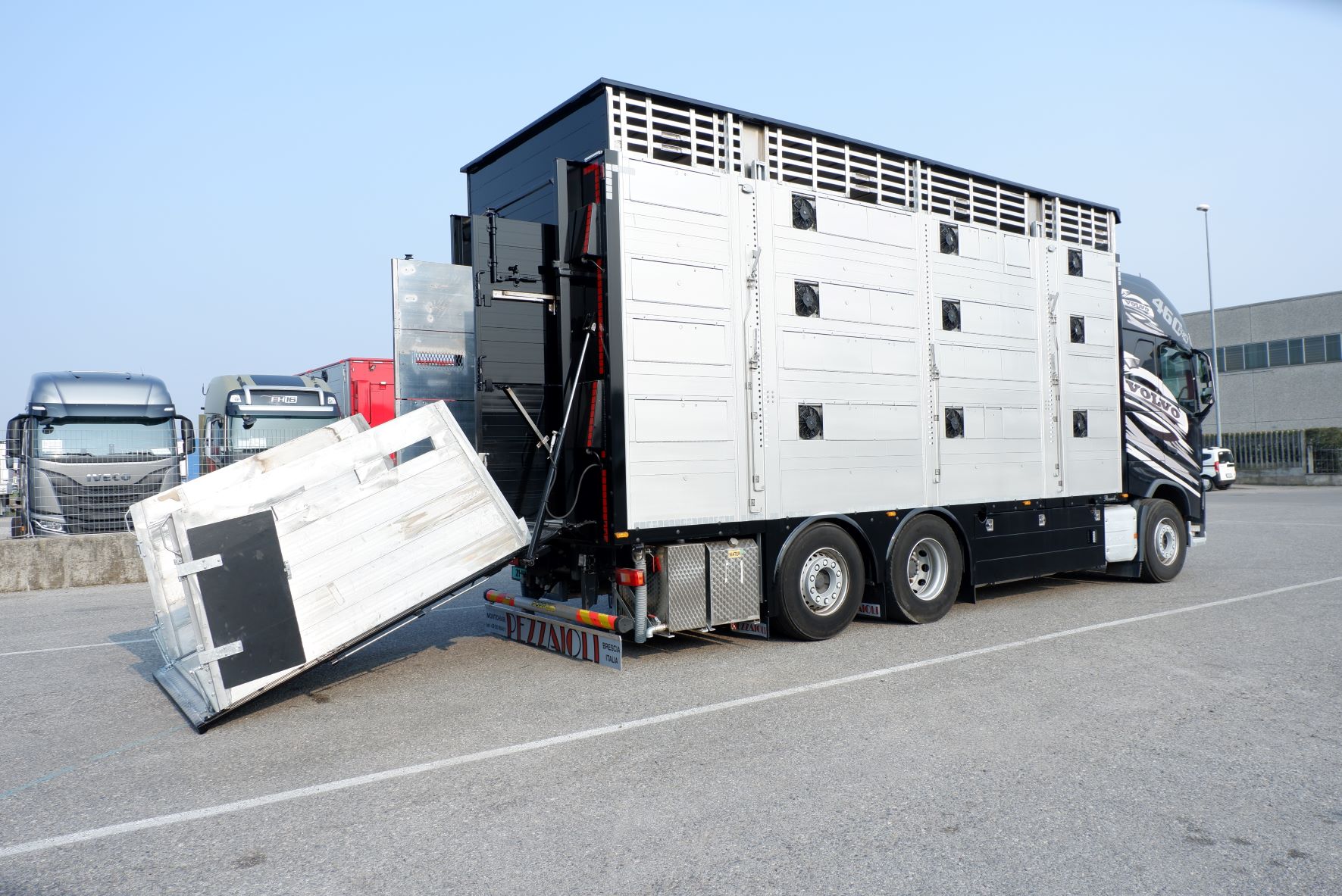

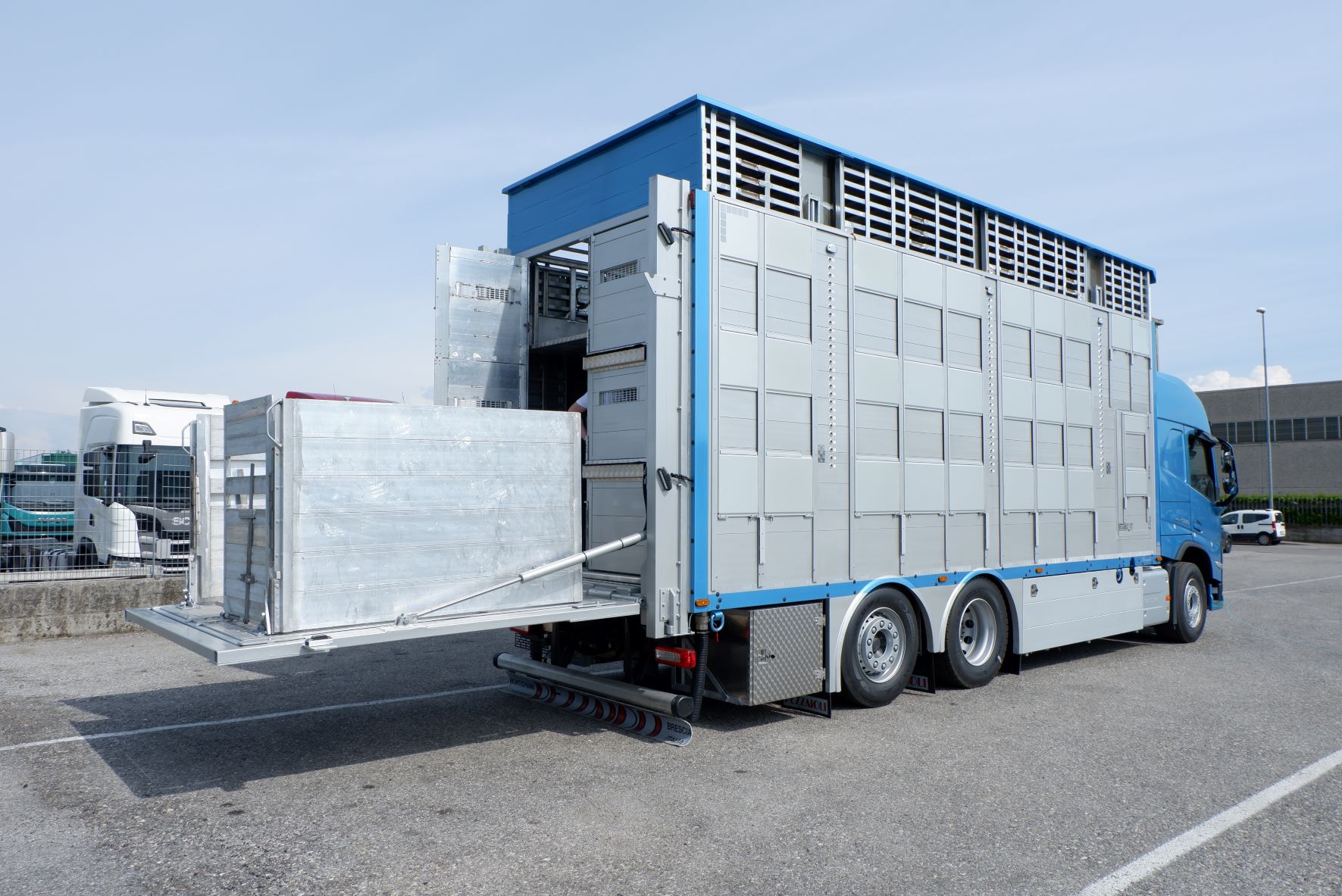

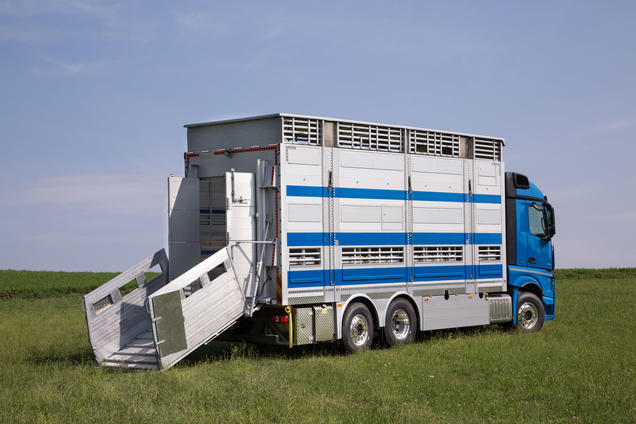

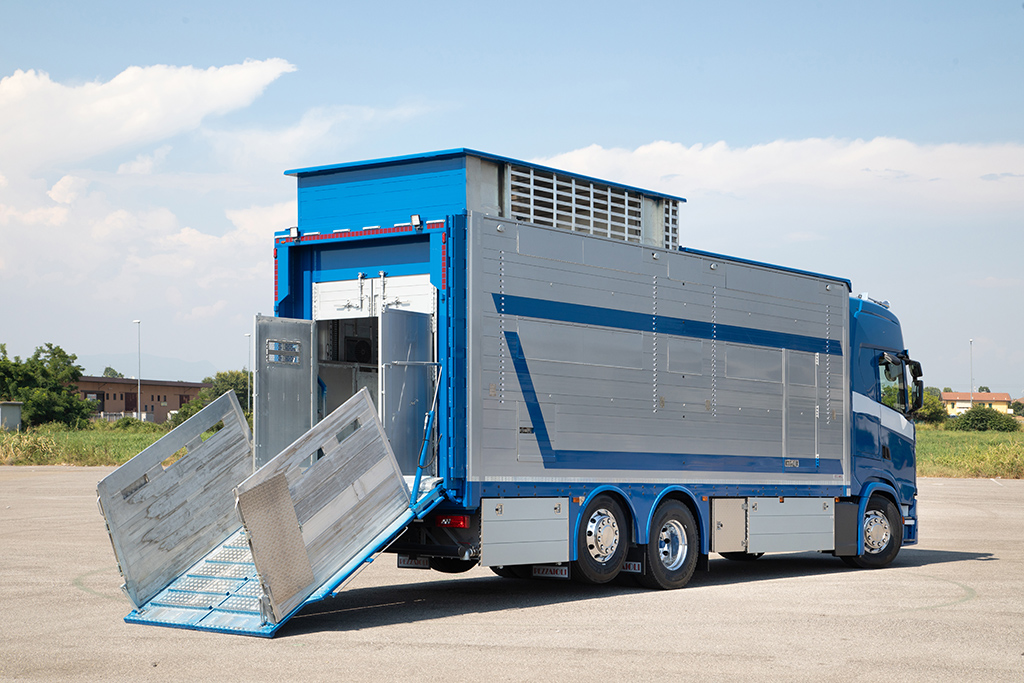

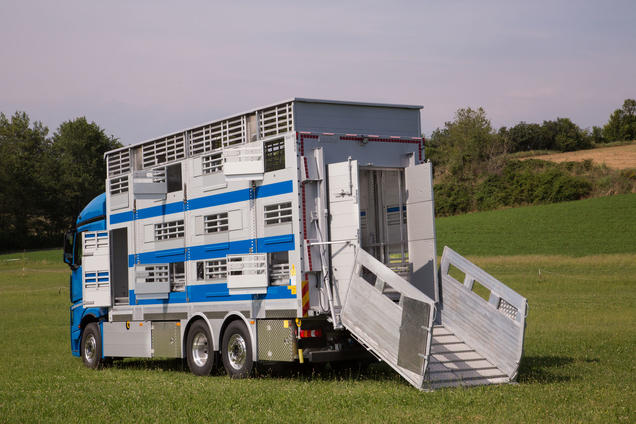

Loading ramp: hydraulic,foldable type, automatically balanced, antiskid, side safety barriers

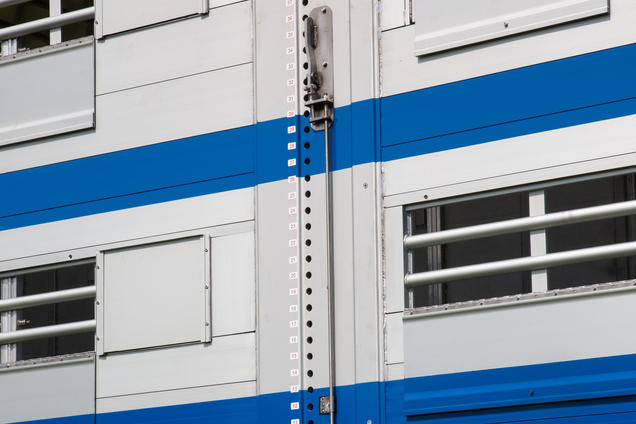

Partitions gates: Aluminium or galvanized steel gates with upper extension for bovines
Roof: sandwich structure with internal insulation
Drinking system: automatic type with nipples for pigs, sheep and bowls for bovines and water tank 250l

OPTIONALS
  • Vents with Aluminium flaps
  • Independently powered loading decks
  • Forced ventilation system (fans)
  • GPS tracking system integrated with temperature control system and opening doors recording, data logger and GPRS transmission
